Are chrome moly vanadium barrels good?
Chrome-Moly Vanadium (CMV) It contains the same elements as 4150 steel. It also contains Vanadium. Vanadium significantly increases the strength, hardness, and high-temperature stability of the steel. This makes CMV the most suitable steel for producing machinegun barrels for full-auto or rapid fire.
Is 4140 or 4150 better?
Tensile strength: 4150 has a higher tensile strength, meaning it has a higher threshold for stress before breaking. Ductility & workability: 4140 is more ductile, meaning it can be bent easier than 4150. It also can be used in cold working conditions while 4150 needs to be thermally treated before forming.
What is chromoly vanadium steel?
Chromium-vanadium steel (symbol Cr-V or CrV; 6000-series SAE steel grades) is a group of steel alloys incorporating carbon (0.50%), manganese (0.70-0.90%), silicon (0.30%), chromium (0.80-1.10%), and vanadium (0.18%). Some forms can be used as high-speed steel. Chromium and carbon can both improve elasticity.
What is a 4150 barrel?
4150 or “Mil-Spec” steel is commonly used in heavy-fire applications. It is a high carbon content steel, which makes it resilient to high-heat scenarios and with its abrasion resistance, the barrels wear slower over time. 416-R Stainless Steel is “stainless” steel formulated specifically for gun barrels.
How long do chrome moly barrels last?
Even shooters who occasionally engage in periodic rapid-fire with their AR-15 style rifle may not notice the effects of excess barrel wear for a number of years. A good non chrome-lined barrel can last for over 5,000 rounds before it begins to show a loss of accuracy.
What is the difference between chrome and chrome moly?
Chrome molybdenum, also called Cr-Mo or chromoly, is a type of steel made from combining chromium, molybdenum, iron, and carbon alloy elements. It has stronger impact resistance, strength, and toughness than chrome vanadium, so it is typically used for tools like impact sockets.
Are 4150 barrels good?
4150 is generally used for parts that need to be tougher, have more strength, and higher hardness than 4140 can provide. 4140 is generally used for automotive parts that are normal sizes and require a decent amount of strength and hardness.
How strong is 4150 steel?
Hot rolled 4150 steel bar is a medium/high-carbon alloy steel that contains chromium and molybdenum. Hot rolled 4150 steel is known for its increased hardenability and mechanical properties….Estimated Mechanical Property Ranges for “Grade 4150”
| Tensile strength (psi) | 100,000 – 110,000 |
|---|---|
| Brinell Hardness (BHN) | 210 – 240 |
Is chrome vanadium a good brand?
Chrome vanadium sockets are a good fit for hand-torque applications and slow action applications like ratcheting. Chrome vanadium socket sets are known for their rigidity and hardness, and they offer a high amount of rust protection. Chrome vanadium is not an ideal for impact sockets.
Does the military use chrome lined barrels?
Chrome-lining was introduced to increase the barrel life, allowing more rounds to be sent down range in less time without the need to replace the rifle barrel. Nowadays, almost all military rifles are universally chrome-lined to protect the rifle barrel from excess erosion.

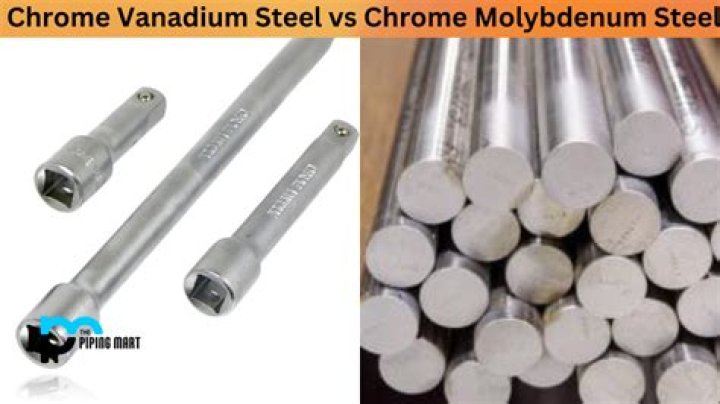

What is the difference between chrome moly and chrome vanadium?
Chrome moly vs chrome vanadium is a wash. The primary purpose of the chrome is to increase depth of heat treatment for a given severity of quench. The common grades of alloy steel have a skooch less than 1% chrome which is way more than is needed to ensure something as skinny as a rifle barrel achieves hardness to the core.
Is 4150 barrel steel considered mil spec?
For a Mil-Spec barrel steel; that specification would be listed as MIL-B-11595E. This is to say that not all 4150 steels are considered Mil-Spec. In order for it to be Mil-Spec it would need to be a 4150 grade AND it would have to comply with the specifications listed in 11595.
What is the difference between chrome moly and stainless steel?
Stainless steel, with it’s chrome content, is more corrosion and erosion resistant than chrome moly. Stainless will erode, but it usually takes longer, and also a stainless barrel would better withstand heat from powder gases that would cause chrome moly to erode quicker.
What is the difference between alloy steel and Moly?
The common grades of alloy steel have a skooch less than 1% chrome which is way more than is needed to ensure something as skinny as a rifle barrel achieves hardness to the core. Moly in the amounts present provides a synergistic effect to the chrome, that is, deeper hardening or a less severe of a quench.
