Can RG6 be used for video?

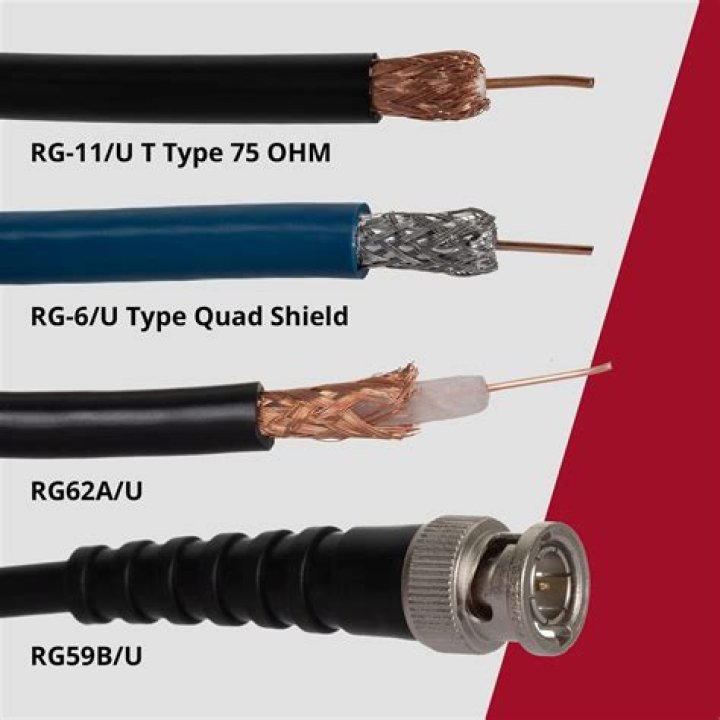

RG6 cable is heavier gauge and has insulation and shielding tuned for high-bandwidth, high-frequency applications such as Internet, Cable TV, and Satellite TV signals. RG59 cable is thinner and is recommended in low bandwidth and lower frequency applications such as analog video and CCTV installations.
How many GHz is RG6?
3.0 GHz
RG6 Dual Shielded 3.0 GHz Coaxial Cable is a Riser (CMR) rated cable 75 ohm for indoor use.
What is RG6 coaxial attenuation at frequency 10 MHz?
An RG-6/U coaxial cable has a characteristic impedance of 75 ohms….Attenuation/signal loss.
| Frequency (MHz) | Attenuation (dB/100 ft) |
|---|---|
| 10 | 0.6 |
| 100 | 2.0 |
| 1,000 | 6.2 |
What is the maximum range of coaxial cables?
Coaxial cable can be cabled over longer distances than twisted-pair cable. For example, Ethernet can run approximately 100 meters (328 feet) using twisted-pair cabling. Using coaxial cable increases this distance to 500m (1640.4 feet).
What is the highest frequency coax?
The drawing below shows all the transmission lines used in RF, from KHz to GHz, the coaxial cable line is the most used and most cost-effective, it can be used by up to 110 GHz with the current technology.
Is RG59 compatible with RG6?
RG6 is primarily being used today for satellite and digital cable TV, where higher frequencies are required that RG59 cable cannot support. Some RG59 and RG6 cables comes paired with a power cable. If you have trouble splitting them, use a cutter and make a small incision between the cables to assist the severance.
Can I use RG6 instead of RG59?
As you can see, there is very little to no overlap between their usages and no way you can substitute either of them for any purpose. While RG59 cables are cheaper, they can’t be used in place of RG6 cables for radio transmission or broadband internet.
What is the frequency of a video signal from a camera?
Video signal obtained from the camera is amplitude modulate on picture RF carrier. Picture carrier is 4.5 MHz less than the sound Carrier. The video signal can contain frequency components of upto 4.2MHz. Hence if both the sidebands need to be transmitted than it will occupy 8.4MHz.
What is the frequency range of TV signal?
TV signals are transmitted in 54 to 806 MHz frequency range. This ATSC 3.0 tutorial covers basics of ATSC 3.0 TV technology including features. It mentions ATSC 3.0 protocol stack, ATSC 3.0 Physical layer, ATSC 3.0 Frame structure and ATSC 3.0 advantages or benefits.
What information is specific to series 6 coaxial cable?
The following information is specific to Series 6 coaxial cable. Signal loss through a length of coaxial cable is primarily a function of two things: Length and Frequency. The longer the length of a piece of coaxial cable, the more signal is lost.
How do you know if a signal is modulated at 10 kHz?
Consider the case when a 10 KHz sine wave is modulating a 5 MHz carrier signal. Looking at its time domain behavior (figure 2) does not expose much about the signal. On the other hand, its spectrum plot (figure 3) clearly indicates that the signal is modulated by a 10 KHz signal.
