Can you put a voltmeter in series?

IF VOLTMETER OR VOLTAGE IS CONNECTED IN SERIES THEN DUE TO HIGH RESISTANCE NO CURRENT WILL FLOW THROUGH CIRCUIT SO NO VOLTAGE DROP OCCUR.

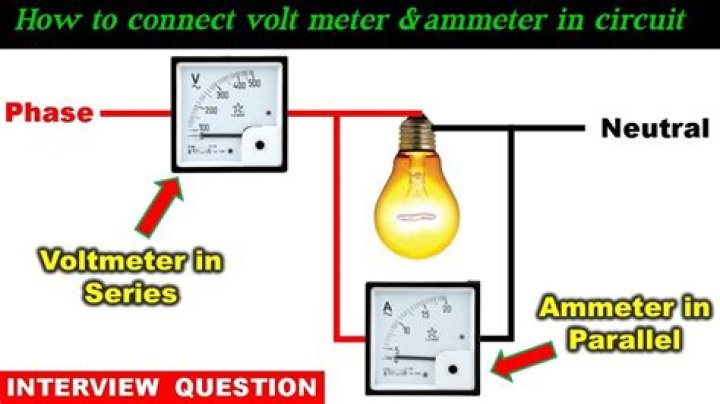

What happens when you put a voltmeter in series?

If a voltmeter is connected in series in a circuit it will lead to open circuit condition in the circuit and no current flows through the circuit and voltmeter will show zero reading as current through the meter is also zero.

Why don’t we use voltmeter in series?

The voltmeter has a high resistance. When a high resistance voltmeter is connected in series it will not have any current to flow through the circuit. Therefore, a voltmeter connected in series acts more like a resistor and not as a voltmeter.

What would a voltmeter in series read?

We measure voltages in a circuit with a voltmeter . The voltmeter is connected in parallel with the component. The supply voltage is shared between components in a series circuit, so the sum of the voltages across all of the components in a series circuit is equal to the supply voltage, .

How does a voltmeter work in a circuit?

A voltmeter is an instrument used for measuring electrical potential difference between two points in an electric circuit. A voltmeter is connected in parallel with a device to measure its voltage, while an ammeter is connected in series with a device to measure its current.

Is voltage added in series?

Remember the voltage increases when batteries are in series, but with batteries in parallel this is not the case. When two or more batteries are placed in parallel, the voltage in the circuit is the same as each individual battery. When batteries are connected in series, the voltage increases.

What is series voltage?

Voltage. In a series circuit, the voltage is the sum of the voltage drops of the individual components (resistance units).
