Can you use pin 13 on Arduino?

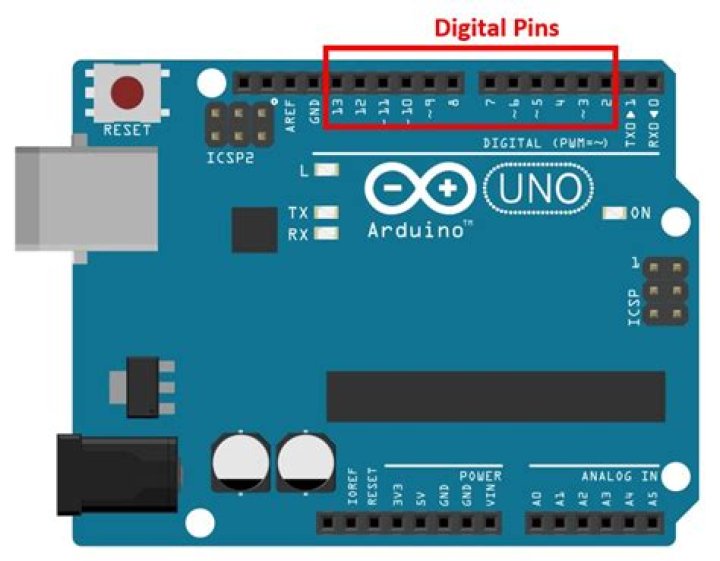

Pins 0-13 of the Arduino Uno serve as digital input/output pins. Pin 13 of the Arduino Uno is connected to the built-in LED. In the Arduino Uno – pins 3,5,6,9,10,11 have PWM capability.
How many LEDs can be on Arduino pin?
Current in Arduino UNO single digital pin will provide 40mA and can power two LEDs. UNO’s VCC pin outputs 200mA and could can power ten LEDs.
Can I connect LED directly to Arduino?
Yes! Do what they do in LED lightbulbs for your home. Drive the LED with a current controller. Set the current controller to drive the current your LED is rated for.
Can we connect LED to analog pin in Arduino?
analogWrite() Writes an analog value (PWM wave) to a pin. Can be used to light a LED at varying brightnesses or drive a motor at various speeds. * In addition to PWM capabilities on the pins noted above, the MKR, Nano 33 IoT, and Zero boards have true analog output when using analogWrite() on the DAC0 ( A0 ) pin.
What is pin 13 LED?
The LED on pin 13 is used by the optiboot loader (the one used on UNO): at Arduino boot time (the LED blinks a few times) when uploading a sketch to Arduino.
What pin is LED on Arduino Uno?
pin #13
On the Arduino Uno, it is near pin #13: On the Arduino MKR 1010 WiFi it is near the 5V output pin: This LED is connected to the digital I/O pin #13 in most boards. In some boards, like the Arduino MKR series, it’s linked to the pin #6.
Why we Cannot directly connect an LED to Arduino pin 13?
Firstly, because the LED has a positive and a negative lead and will not light if they are the wrong way around and secondly, an LED must be used with a resistor to limit or ‘choke’ the amount of current flowing through the LED – otherwise the LED could burn out!
What is a pin 13 LED?
What is the difference between analogWrite and digitalWrite?
digitalWrite sets the pin to an high or low value that remains at exactly that value until digitalWrite is called for that pin again. analogWrite sets the pin to have an oscillating value which has a pulse length based of the duty cycle specified as the second parameter.
How many led’s on one Arduino pin?
Current in Arduino UNO single digital pin will provide 40mA and can power two LEDs. UNO’s VCC pin outputs 200mA and could can power ten LEDs. All we need to do is power our LEDs from the VCC and use the Arduino digital pin as a switch. There are several ways to achieve this.
What does led mean in Arduino?
The ‘L’ LED. The Arduino has rows of connectors along both sides that are used to connect to electronic devices and plug-in ‘shields’ that allow the Arduino to do more. However, the Arduino also has a single LED that you can control from your sketches.
How to program Arduino light?
First we choose the LED we want to make changes to. This is made slightly more confusing by the programming convention to start counting from 0.
What is analog pin in Arduino?
Analog pins are general analog input pins, through which analog signal (Max range of 24v) can be feed to the arduino, for further analysis or value reading. PWM pins uses the concept of Pulse Width Modulation.
