Do spiral wound gaskets contain asbestos?
Asbestos Spiral Wound Gaskets: This sophisticated type of gasket is made from concentric layers of metal and asbestos. The product’s design is extremely strong, but it still leaves nearly pure asbestos fibers exposed to the open air.
What is a Cnaf gasket?
CNAF gaskets are made from sheet material where the fibres are combined with a rubber binder which is normally Nitrile, EPDM, Neoprene or SBR. It is important to select the right grade, as unlike asbestos, CNAF materials have different chemical resistance and temperature ratings dependent on the grade.
Can you use a raised face gasket on a flat face flange?
Flat face flanges are never to be bolted to a raised face flange. ASME B31. 1 says that when connecting flat face cast iron flanges to carbon steel flanges, the raised face on the carbon steel flange must be removed, and that a full face gasket is required.
How much should gasket be compressed?
What is the proper compression percentage for my gasket? Rubber gaskets are compressed or squeezed by a percentage of their original size. A gasket that compresses too much or too little will not form a proper seal. The ideal compression percentage is 40, the maximum is 50, and the minimum is between 10 to 15.
What is an axle flange gasket?
An axle flange is the part of an axle that has the wheel studs coming through it in order to mount a wheel to the axle. The flat, circular axle flange typically rests inside of the wheel drum or disk assembly, directly opposite the wheel bearing.
What is a Teflon gasket?
Teflon Gaskets. A polymer is a chemical reaction that forms a compound, which then mixes particles with clusters of repeating large molecules to form a substance. Teflon is the polymerized version of tetrafluoroethylene (TFE). There are three main types of Teflon gasket materials: virgin Teflon, filled Teflon and expanded Teflon.
What is a spiral wound gasket?
Spiral Wound Gasket is one of the widely used seals, the spiral wound gasket depends on the mechanical characteristics of a formed metal strip which works as a spring, offering a better resilience under fluctuated pressure & temperature. They are widely used in the industrial field and fluid sectors.
What is spiral gasket?

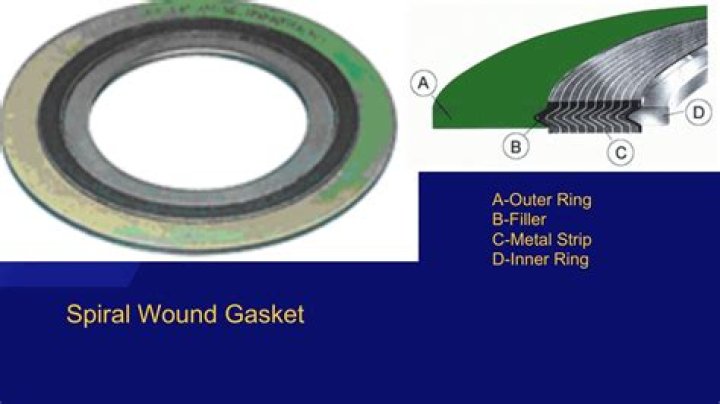

Spiral Wound Gaskets are metal gaskets made with three key elements. 1) A metal spiral winding which is spot welded on the OD and ID. 2) A seal filler material to go between the winding layers. This material must be compatible with the application the spiral wound gasket is meant to seal.
