Does a contactor operate through magnetism?

A magnetic contactor is a device that is powered by magnetism. Used to open and close the contacts in the motor control circuit, may also be called a magnetic switch or a contactor. A magnetic contactor is a device that is very often used in industry.

What is magnetic contactor?

Magnetic contactors are the same as the electrical relays which are used in a number of electric motors. Magnetic contactors are used in the electric motors to balance the change in frequency of the motor or the state of the motor which can be termed as the switching of the motor from ON and OFF state.

Is a contactor an electromagnet?

A contactor is typically controlled by a circuit which has a much lower power level than the switched circuit, such as a 24-volt coil electromagnet controlling a 230-volt motor switch. Unlike general-purpose relays, contactors are designed to be directly connected to high-current load devices.

What causes contactor to stick?

The most common situation in contactor failures is contact sticking and coil burning. The reason for contact sticking; If more current is passed through the main power contacts than it can carry, the contacts will overheat after a while and the contacts may stick as a result of this warming.

How a magnetic contactor operates?

Operating Principle of a Contactor:The current passing through the contactor excites the electromagnet. The excited electromagnet produces a magnetic field, causing the contactor core to move the armature. When current is removed, the coil is de-energized and opens the circuit.

What type of wiring is magnetic?

transformers
Magnet wire can also be found in transformers, which are essentially devices that transfer electrical energy from one circuit to another through copper coils. Power can be transferred through a magnetic field, rather than a metallic connection between the two circuits.

How does the magnetic contactor operate?

Working principle of a magnetic contactor Magnetism is activated by the current -flowing through the coil- and the two magnetism come closer to each other. This movement turns off the two magnetism. Therefore, the contacts close, and the springs provide power to the contacts.

What is the difference between a magnetic starter and a contactor?

Contactors can be used as a magnetic starter. A magnetic starter is a device designed to provide power to electric motors. It includes a contactor as an essential component, while also providing power-cutoff, under-voltage, and overload protection.

What is the difference between a contactor and a magnetic starter?

A contactor applies voltage to a contactor coil to close the contacts and to supply and interrupt power to the circuit. On the other hand, a starter employs overload relays to protect the motor from load surges by shutting it down to prevent overheating.

How do you keep electrical contacts from sticking?

How do you help reduce the sticking of contacts? Electrical contacts are usually made of CDA-110 electrical copper and some have silver tips brazed onto the copper backing to help prevent electrical sticking.

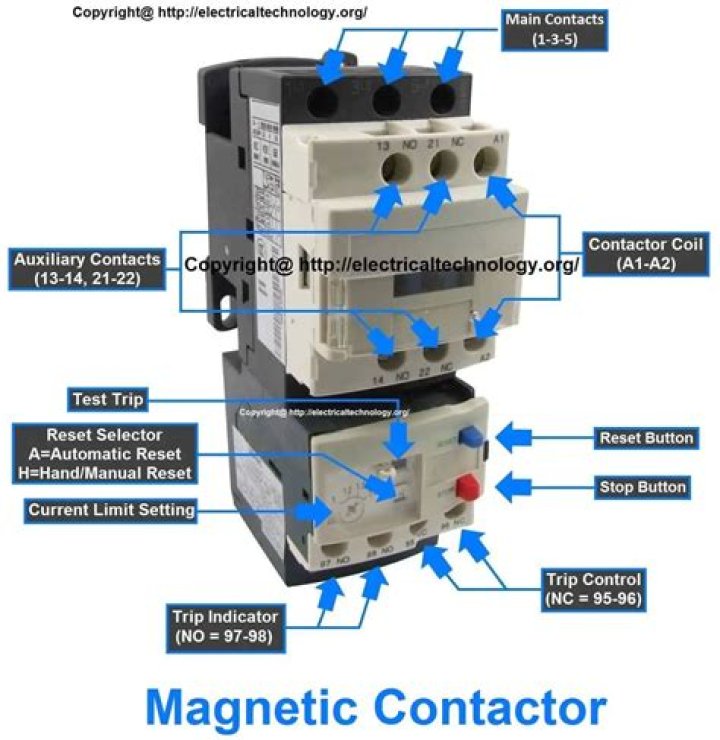

What are A1 and A2 on a contactor?

One side of the contactor coil (A2) is connected directly to one of the incoming power lines. The other side of the coil (A1) has two possible pathways to complete a connection to the other incoming power line.
