Does an uncut plasmid look on gel?

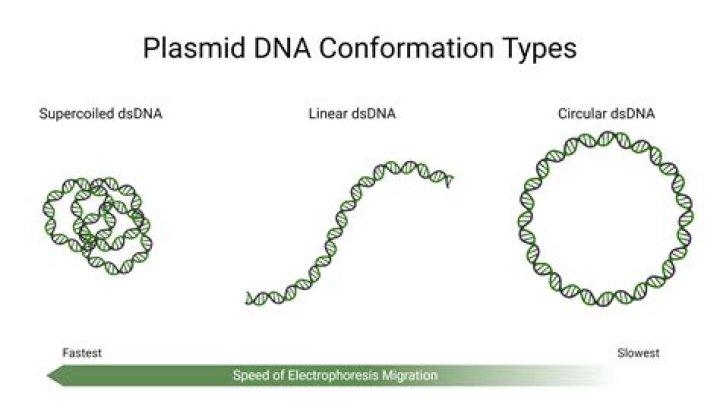

When uncut plasmid DNA is isolated and run on an agarose gel, you are likely to see 3 bands. This is due to the fact that the circular DNA takes on several conformations the most abundant being: supercoiled, relaxed and nicked. If your digest lanes look like your uncut lane then there is something wrong!
How would the migration of an uncut plasmid compare to a linearized piece of DNA of the same length?
Typically, uncut plasmids will appear to migrate more rapidly than the same plasmid when linearized. It is a well observed fact that plasmids exists as circular supercoiled molecules (i.e. ends of the plasmid DNA are not free rather joined to form the circle) in the bacterial cell.
Why does uncut plasmid DNA give multiple bands?
However, it is likely that two or three bands will appear in the undigested plasmid lanes. The reason for this is that plasmids isolated from cells exist in several forms. This circular plasmid form will not move through the agarose gel as easily as the supercoiled form.
What do the bands on gel electrophoresis represent?
Gel electrophoresis is a technique used to separate DNA fragments according to their size. When a gel is stained with a DNA-binding dye, the DNA fragments can be seen as bands, each representing a group of same-sized DNA fragments.
What is the well in gel electrophoresis?
At one end, the gel has pocket-like indentations called wells, which are where the DNA samples will be placed: Before the DNA samples are added, the gel must be placed in a gel box. One end of the box is hooked to a positive electrode, while the other end is hooked to a negative electrode.
Which type of DNA move faster in gel electrophoresis?
DNA fragments are negatively charged, so they move towards the positive electrode. Because all DNA fragments have the same amount of charge per mass, small fragments move through the gel faster than large ones.
What voltage do you run your gel at?
One rule of thumb is to set your voltage at about 5-15 V per centimeter of gel. Small gels will run closer to 100V, while large gels may approach 300V. Timing will vary for this step, ranging from 45 min to 2 hours.
What is an uncut plasmid?
In vivo, plasmid DNA is a tightly supercoiled circle to enable it to fit inside the cell. Linear DNA runs through a gel end first and thus sustains less friction than open-circular DNA, but more than supercoiled. Thus, an uncut plasmid produces two bands on a gel, representing the oc and ccc conformations.
What is the difference between cut and uncut plasmids?
Gel bands of cut (left) and uncut (right) plasmids. All have the same mass in basepairs, but are in different positions because their differing shape causes them to move through the gel at different speeds. In Fig. 5, the lane on the left contains a plasmid that was digested in one place with a restriction enzyme.
Why does uncut plasmid DNA on agarose gel has 3 bands?
One Molecule, Many Forms: Why Uncut Plasmid DNA on Agarose Gel Has 3 Bands When uncut plasmid DNA is isolated and run on an agarose gel, you may observe two, three, or even four or more bands. Hopefully, the majority of your isolated DNA will be supercoiled, but other forms can also crop up.
How do I cut the plasmid DNA during gel electrophoresis?
During gel electrophoresis, you may have to load uncut plasmid DNA, digested DNA fragment, PCR product, and probably genomic DNA that you use as a PCR template into the wells. Your digested DNA fragment is a digested PCR product. The next step is to identify those bands to figure out which one to cut. Gel Electrophoresis.
How to tell the difference between a gel and a plasmid?
Compare this with a same-size elastic band that you have cut once with scissors… lay them out along the side of a ruler.. the cut plasmid (ie elastic band) is “longer” than the uncut one, which *appears* shorter on the ruler, even though it is the same length. Hold that image! Now consider the gel. Gels are like three dimensional nets.
