Does Multisim have a multimeter?
Multisim 14.2 Help Use the multimeter to measure AC or DC voltage or current, and resistance or decibel loss between two nodes in a circuit. The multimeter is auto-ranging, so a measurement range does not need to be specified.
Where is voltmeter in Multisim?
The voltmeter can be found in the measurement toolbar.
How does Multisim measure AC current?
Ammeter—Measures current flowing through the circuit in a branch. Insert the multimeter in series with the load to measure current flow, as shown below. To measure current at another node in the circuit, connect another multimeter in series at that point and activate the circuit again.
How does Multisim calculate voltage?
To measure voltage in Multisim we use probes.
- Locate the voltage probe icon at the left hand side of the screen.
- Place this on a wire in your circuit.
- Locate a reference probe on the left hand side of the screen.
- Place this on the wire that you would like to measure with reference to.
- Select the voltage probe.
What does Multisim 14 2 help?
Multisim 14.2 Help Use the multimeter to measure AC or DC voltage or current, and resistance or decibel loss between two nodes in a circuit. The multimeter is auto-ranging, so a measurement range does not need to be specified. Its internal resistance and current are preset to near-ideal values, which can be changed.

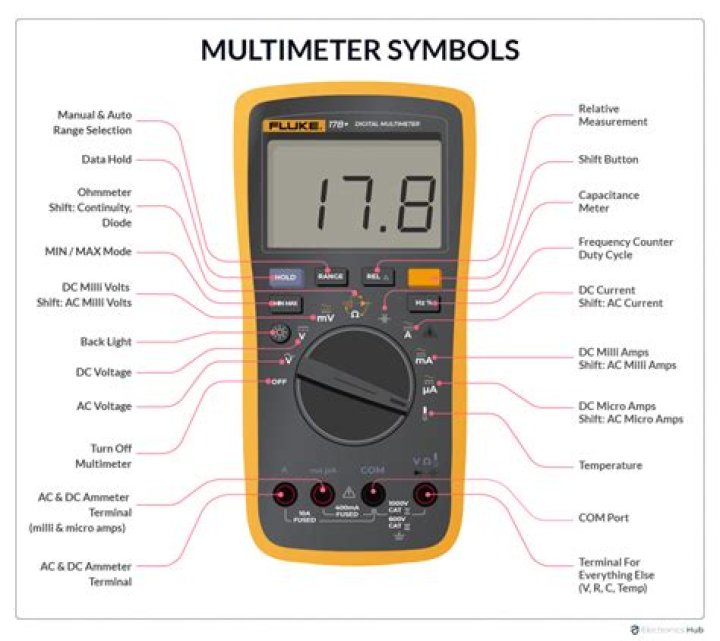

What are the controls of a multimeter?
The multimeter has the following controls: Ammeter— Measures current flowing through the circuit in a branch. Insert the multimeter in series with the load to measure current flow, as shown below. To measure current at another node in the circuit, connect another multimeter in series at that point and activate the circuit again.
How to use a multimeter to measure electrical resistance?
To measure the resistance, attach the multimeter’s probes in parallel with the component network, in the same manner as shown for the voltmeter. To get an accurate measurement, make sure that: there is nothing else in parallel with the component or component network. Decibels —Measures decibel voltage loss between two nodes in a circuit.
How do you measure decibels with a multimeter?
To measure the decibels, select this option and attach the multimeter’s probes in parallel with the load, in the same manner as shown for the voltmeter. Sinewave —Measures the root-mean-square (RMS) voltage or current of an AC signal. Any DC component of the signal is eliminated so that only the AC component of the signal is measured.
