Does my water heater need a pressure relief valve?

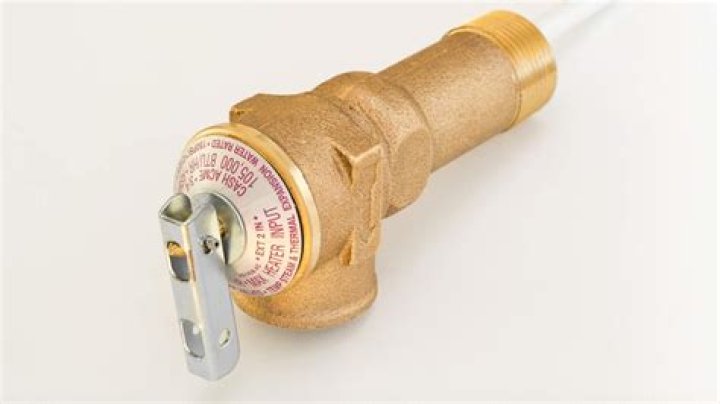

What does the relief valve do? The relief valve is an important safety feature on the water heater. If the water inside the unit gets too hot (usually above 210 degrees) or pressure builds up too high (above 150 psi), the water heater can become damaged or even explore. A good solution to this risk is the relief valve.
Where should a pressure relief valve be located?
It is installed on the main water line. This is most commonly in the front flower bed, but it could also be behind an access panel in an inside wall. When the PRV goes bad, it can cause pressure and water flow issues, weird noises, or just start to leak.
Can you use PVC for pressure relief valve?
be constructed of an approved material, such as CPVC, copper, polyethylene, galvanized steel, polypropylene, or stainless steel. PVC and other non-approved plastics should not be used since they can easily melt. not be smaller than the diameter of the outlet of the valve it serves (usually no smaller than 3/4″).
What pressure should my hot water tank be?
Pressures can vary depending on your boiler, but the typical pressure expectation is between 1 and 2 bar.
What causes too much pressure in a water heater?
There’s a safety valve in every water heater, called the Temperature and Pressure Relief Valve, or a T&P relief valve. In short, when the temperature or pressure of the water heater gets too high, the valve opens, and releases water that’s causing the increase in pressure.
Can you use SharkBite on pressure relief valve?
Hello, The SharkBite NCLX-5LX T&P relief valve is designed to relieve at 210°F and 150 psi. This temperature and pressure exceeds the temperature/pressure limits of PEX tubing.
What type of pipe is best for hot water?
Chlorinated Polyvinyl Chloride Piping (CPVC) CPVC is suitable for hot water and drinking water, unlike normal PVC. Compared with copper, CPVC pipes are smoother, and they produce less noise when water flows through.
What size line should you run to the relief valve on residential water heater?
The relief valve on your water heater has a pipe attached. Most residential water heaters have a 3/4″ threaded opening for the discharge pipe. By code, you have to run the same size as the opening which means the pipe needs to be 3/4″ in diameter.
How do you test a water heater pressure relief valve?
To test the TPR valve, simply lift it up and down several times. This should lift the attached brass stem and hot water should get flow out of the drainpipe. You should hear a gurgling sound as the valve allows some water to be released into the drain tube.
What kind of pressure relief valve do I need for water heater?
For installations with separate storage tanks, the approved, self-closing (levered) pressure relief valve and temperature relief valve or combination thereof conforming to ANSI Z21.22 valves shall be installed on both the storage water heater and storage tank.
What is the code for pressure marking on a water heater?
501.7 Pressure marking of storage tanks. Storage tanks and water heaters installed for domestic hot water shall have the maximum allowable working pressure clearly and indelibly stamped in the metal or marked on a plate welded thereto or otherwise permanently attached.
Are there any code requirements for water heaters?
There are a lot of code requirements around water heaters and not enough space to get into every one here. What follows are 10 of the most common code violations that I and other code professionals see out in the field when looking at water heaters, particularly replacement water heaters. 1.
What are the requirements for a combination temperature and pressure relief valve?
1. All pressurized storage-type water heaters and unfired hot water storage tanks shall be equipped with one or more combination temperature and pressure relief valves. The temperature steam rating of a combination temperature and pressure relief valve or valves shall equal or exceed the energy input rating in BTU per hour of the water heater.
