Does STM32 have ADC?
STM32 ADC Brief The STM32F103C8 (Blue Pill) & STM32F432KC have a 12-bit ADC which is a successive approximation analog-to-digital converter. It has up to 18 multiplexed channels allowing it to measure signals from sixteen external and two internal sources.
What is ADC in STM32?
The ADC embedded in STM32 microcontrollers uses the SAR (successive approximation register) principle, by which the conversion is performed in several steps. Each step is driven by the ADC clock. Each ADC clock produces one bit from result to output. The ADC internal design is based on the switched-capacitor technique.
How do I use ADC STM32?
The easiest way to start using the ADC is to enable it in the poll mode….To do that you will need the following:
- Enable the ADC clock.
- Enable the GPIO clock for the pin you want to use.
- Configure the GPIO pin as an analog input.
- Configure the ADC speed (prescaler/sample time)
- Enable continuous measurement mode.
How fast is STM32 ADC?
ADC sample rate of 5 Ms/s on bluepill STM32F103.
What is Hal ADC?
The ADC HAL module is an API for analog-to-digital conversions and is implemented on r_adc. It supports both the ADC12 and ADC14 peripherals available on the Synergy microcontroller hardware; a user-defined callback can be created to process the data each time a new sample is complete.
What is the ADC size of STM32 and how many channels are there?
To measure a three-phase power, ADC1 and ADC2 are used with 6 channels (3 channels for the voltage and 3 channels for the current). The dual fast interleaved ADC mode is intended for the conversion of one channel.
How do you program ADC?
Steps for Configuring ADC
- Configure the GPIO pin for ADC function using PINSEL register.
- Enable the CLock to ADC module.
- Deselect all the channels and Power on the internal ADC module by setting ADCR.
- Select the Particular channel for A/D conversion by setting the corresponding bits in ADCR.SEL.
- Set the ADCR.
What is the ADC size of stm32 and how many channels are there?
Which among the following ADC type has best conversion rate?
1. Flash type ADCS are considered the fastest. 2. In successive approximation type ADCS, conversion time depends upon the magnitude of the analog voltage.
What is sampling time in ADC?
The sampling time is the ADC clock cycles for which the sample and hold capacitor is charged up to the channel input voltage. The ADC then requires another 12 clock cycles to convert to 12 bits accuracy.
What is an STM32 ADC microcontroller?
STM32 microcontrollers have one of the most advanced ADCs on the microcontroller market. You could imagine a multitude of applications based on the STM32 ADC features. Some ADC modes are provided to simplify measurements and give efficient results in applications such as motor control.
What is dual mode in STM32?
Dual modes are available in STM32 microcontrollers that feature two ADCs: ADC1 master and ADC2 slave. ADC1 and ADC2 triggers are synchronized internally for regular and injected channel conversion. ADC1 and ADC2 work together. In some devices, there are up to 3 ADCs: ADC1, ADC2 and ADC3.

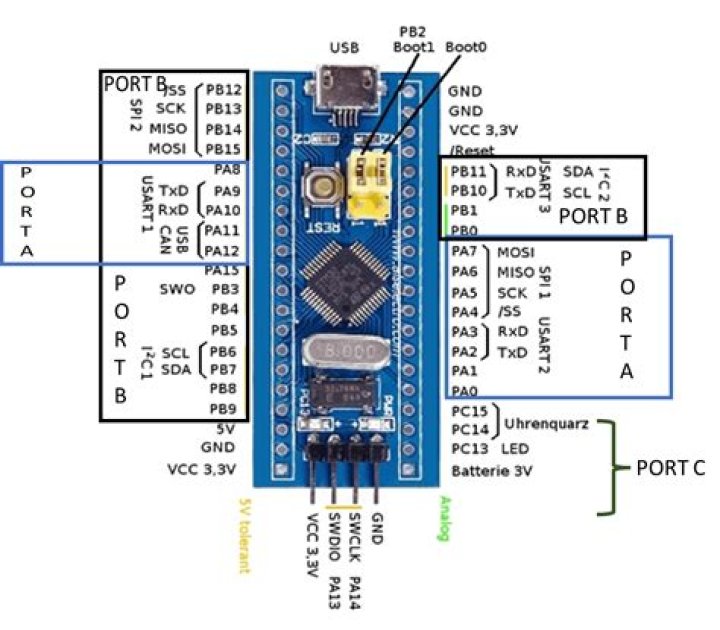

What is the ADC of the stm32f103c8 (blue pill)?
The ADC Tutorial down below is a complete introductory guide for this topic and highly recommended. The STM32F103C8 (Blue Pill) & STM32F432KC have a 12-bit ADC which is a successive approximation analog-to-digital converter. It has up to 18 multiplexed channels allowing it to measure signals from sixteen external and two internal sources.
How do I enable DMA on a STM32 project?
Create a new STM32 project, and under System Core, select DMA. Add a new DMA request in DMA1 (the STM32L476 has 2 DMA peripherals). Change the request to USART2_TX, and you can leave the rest of the settings at their defaults. Open main.c, and copy in the following code.
