How can I generate PWM using IC 555?

In the above straightforward configuration the IC 555 is all set for generating the required PWM pulses, it just requires a square wave pulse or a clock input at its pin#2, which determines the output frequency, and a variable voltage input at pin#5 whose amplitude or the voltage level decides the pulse width …

What is PWM controller IC?

TL494 is a PWM controller IC used for power electronics circuits. It comprises of on-chip two error amplifiers an oscillator with adjustable frequency feature, an output flip-flop having pulse steering control, and an output control circuit with feedback.

What is PWM circuit?

Pulse width modulation (PWM) is a powerful technique for controlling analog circuits with a microprocessor’s digital outputs. PWM is employed in a wide variety of applications, ranging from measurement and communications to power control and conversion. Analog circuits.

Why 555 timer is used to generate PWM?

Initially, when the 555 Timer IC is reset, its output is LOW. This will turn ON the internal transistor, which will provide a discharge path for the Capacitor through R2. As the capacitor voltage drops below 1/3 VCC, the output becomes HIGH and transistor is turned OFF.

What is PWM generator?

The PWM Generator block generates pulses for carrier-based pulse width modulation (PWM) converters using two-level topology. The amplitude (modulation), phase, and frequency of the reference signals are set to control the output voltage (on the AC terminals) of the bridge connected to the PWM Generator block.

How does PWM IC work?

In short, PWM operates like a switch which constantly cycles on and off, thereby regulating the amount of power the fan or pump motor gains. The PWM system that is used for controlling fans and pumps works with the motor, either getting +12V (full power) or 0V (no power). So, the motor is being fed impulses of power.

How does a PWM work?

PWM works by pulsating DC current, and varying the amount of time that each pulse stays ‘on’ to control the amount of current that flows to a device such as an LED. PWM signals are typically square waves, like the one in the illustration below. A PWM signal (square wave) with a 50% duty cycle.

How does a 555 PWM LED dimmer work?

The 555 PWM LED dimmer circuit controls the brightness of the LEDs. The main concept of the circuit is to generate a pulse width modulation PWM signal with the help of good old reliable 555 timer IC and to change the power supplied to the LEDs, thereby achieving the LED dimming effect.

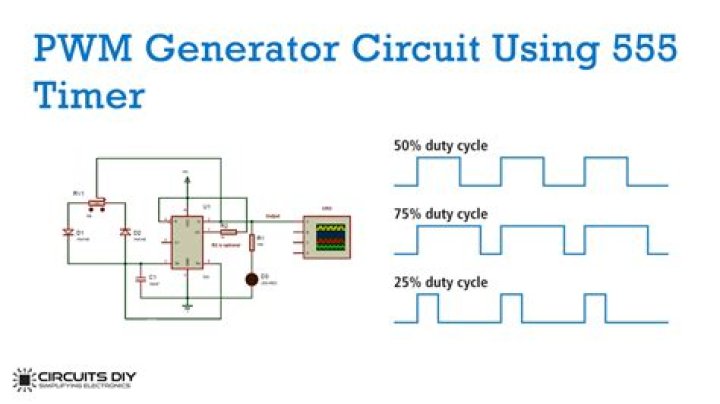

How to generate PWM signal from a 555 timer IC?

Based on the charge and discharge timings of the Capacitor, a PWM Signal is generated at the OUT Pin i.e. Pin 3 of the 555 Timer IC. The output of the 555, which is taken form pin 3, is connected to the led panel through the NPN Transistor (2N2222 is used here) and a 1KΩ resistor.

How to use IC 555 for pulse width modulation?

There are basically two methods through which the IC 555 can be used for generating pulse width modulation output. The first method is using only a single IC 555, and a few associated parts such as a diodes, a potentiometer and a capacitor.

What is the use of IC 555?

The IC 555 is an extremely useful and versatile device which can be applied for configuring many useful circuits in the field of electronics. One very useful feature of this IC is its ability to generate PWM pulses which can be dimensioned or processed as per the needs of the application or the circuit.
