How cavitation occurs in turbine?
It occurs in the absence of the net positive suction head the pump. It’s the formation of bubbles in the liquid flowing in any Hydraulic Turbine. It occurs when the vapor pressure goes beyond the static pressure of the liquid. In some engineering contexts, cavitation is a significant cause of wear.
How do turbines reduce cavitation?
The cavitation in reaction turbines can be avoided to a great extent by using the following methods: (a) By installing the turbine below the tail race level. (b) By using stainless steel runner of the turbine. (c) By providing highly polished blades to the runner.
What are the effects of cavitation in turbine?
The effects of cavitation are hydraulic (low efficiency due to flow instability) and mechanical (surface damage, noise and vibration). In addition, it may also lead to surface erosion[3]. It is difficult to avoid cavitation in hydro turbines which cannot be avoided completely but can be reduced.
What is cavitation and its effects?
Cavitation usually the result of rapid changes of pressure of the liquid. The cavitation cause erosion of surface as well as noise and vibrations. The cavitation occurs in pumps, orifice, venturi meter, control valves, impellers, etc. Eventually forms cavities on the boundaries (that is why it is called cavitation).
What causes cavitation?

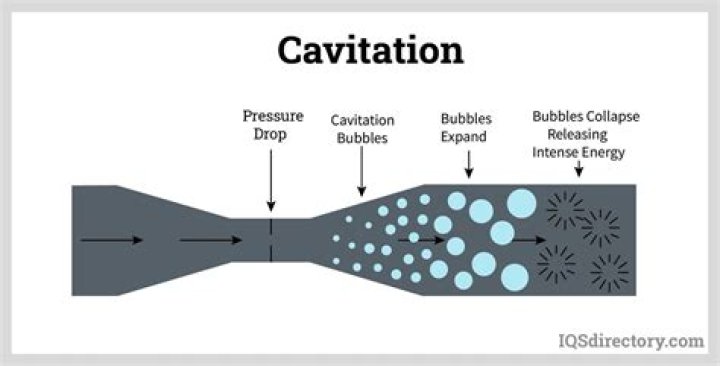

Cavitation happens when bubbles, or voids, form within a fluid because the pressure quickly drops below the vapor pressure. When the bubbles experience higher pressures they collapse, creating small shockwaves that, over time, damage parts. When these pressure waves punch tiny holes into parts, it’s called pitting.
What is cavitation in turbine explain?
Cavitation in reaction turbines. If the pressure of a liquid in course of its flow becomes equal to its vapour pressure at the existing temperature, then the liquid starts boiling and the pockets of vapour are formed which create vapour locks to the flow and the flow is stopped. The phenomenon is known as cavitation.
How can we avoid cavitation?
How to Prevent Cavitation
- Reduce motor speed (RPMs).
- Install an impeller inducer.
- Incorporate a booster pump into your pump system.
- If possible, reduce the temperature of your pump, liquid, and/or other components.
- Increase liquid level around the suction area.
What are the causes of cavitation?
What happens due to cavitation?
Cavitation occurs when the liquid in a pump turns to a vapor at low pressure. When cavitation takes place, air bubbles are created at low pressure. As the liquid passes from the suction side of the impeller to the delivery side, the bubbles implode.
What happens during cavitation?
What are the precautions of cavitation?
How to Prevent Cavitation
- Reduce motor speed (RPMs).
- Install an impeller inducer.
- Incorporate a booster pump into your pump system.
- If possible, reduce the temperature of your pump, liquid, and/or other components.
- Increase liquid level around the suction area.
What are the two causes of cavitation?
Common causes of suction cavitation can include clogged filters, pipe blockage on the suction side, poor piping design, pump running too far right on the pump curve, or conditions not meeting NPSH (net positive suction head) requirements.
What is cavitation in a hydraulic turbine?
CAVITATION IN TURBINES. Cavitation is formation of vapor bubbles in the liquid flowing through any Hydraulic Turbine. Cavitation occurs when the static pressure of the liquid falls below its vapor pressure. Cavitation is most likely to occur near the fast moving blades of the turbines and in the exit region of the turbines.
What is cavitation and how does it occur?
Over time with repeated bursts, the material starts to develop cracks and eventually break-off. Thus cavitation is an unsteady phenomenon that triggers low-frequency pressure oscillations and high-frequency pressure pulses. The pressure oscillations are due to the cavity dynamics while the pressure pulses are associated with cavity collapse.
What parameters should be avoided while operation of hydraulic turbines?
The parameters beyond which cavitation starts and turbine efficiency falls significantly should be avoided while operation of hydraulic turbines. Flow separation at the exit of the turbine in the draft tube causes vibrations which can damage the draft tube. To dampen the vibration and stabilize the flow air is injected in the draft tube.
Why is air injected in the draft tube of hydraulic turbine?
To dampen the vibration and stabilize the flow air is injected in the draft tube. To totally avoid the flow separation and cavitation in the draft tube it is submerged below the level of the water in tailrace. Hydraulic Turbines transfer the energy from a flowing fluid to a rotating shaft. Turbine itself means a thing which rotates or spins.
