How do energy meters measure energy?

Your electric meter records electricity usage in kilowatt-hours. In simple terms, 1 kilowatt hour = 1,000 watt-hours. For example, if you turn on a 100-watt light bulb for 10 hours, the energy usage is calculated as 100 watts x 10 = 1,000 watts (or 1 kilowatt hour).

What is the function of energy meter?

Definition: The meter which is used for measuring the energy utilises by the electric load is known as the energy meter. The energy is the total power consumed and utilised by the load at a particular interval of time. It is used in domestic and industrial AC circuit for measuring the power consumption.

What are the main parts of energy meter?

The components of this system are two silicon steel laminated electromagnets. The upper electromagnet is called shunt magnet and it carries a voltage coil consisting of many turns of thin wire. The lower electromagnet is called series magnet and it carries the two current coils consisting of a few turns of thick wire.

How does a 3 phase energy meter work?

The principle of working of a 3-phase energy meter is similar to the single-phase energy meter. When the load is connected to the meter both the pressure coil and the current coil of the two elements mounted on the shunt and series magnet produces magnetic flux.

What are types of energy meters?

The energy meters are classified into two basic categories, such as: Electromechanical Type Induction Meter. Electronic Energy Meter.

What are meters used for?

A meter is a metric unit of length used worldwide by scientists to measure lengths and distances between objects.

What is braking in energy meter?

The braking system of the energy meter: The main part of this system is a permanent magnet called a brake magnet. This eddy current reacts with the flux and exerts a braking torque which opposes the motion of the disk. The speed of the disk can be controlled by changing flux.

What is the power factor?

Power factor (PF) is the ratio of working power, measured in kilowatts (kW), to apparent power, measured in kilovolt amperes (kVA). Apparent power, also known as demand, is the measure of the amount of power used to run machinery and equipment during a certain period. It is found by multiplying (kVA = V x A).

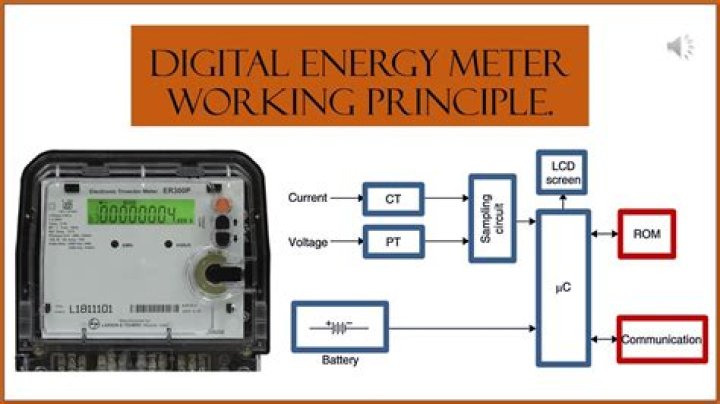

How does an electronic energy meter work?

The basic Electronic Energy meter senses the current and voltage which signals from the circuitry, converts them in to the digital signal and makes necessary calculations to get the units of electrical energy which has been consumed.

What are the different types of energy meters?

1. Electromechanical induction type 2. Electronic Energy Meter 3. Smart Energy Meter According to phase energy meter classified into three types which are given below. 1. Single Phase Energy Meter 2. Three Phase Energy Meter

What is a smart meter and how does it work?

A smart meter is an electronic device that records consumption of electric energy and communicates the information to the electricity supplier for monitoring and billing. Smart meters typically record energy hourly or more frequently, and report at least daily.

What are the main problems with electric energy meters?

A foremost problem with these types of energy meters is their proneness to tampering, which necessitates an electrical-energy-monitoring system. These series and shunt type meters are widely used in domestic and industrial applications.
