How do you calculate beam buckling?

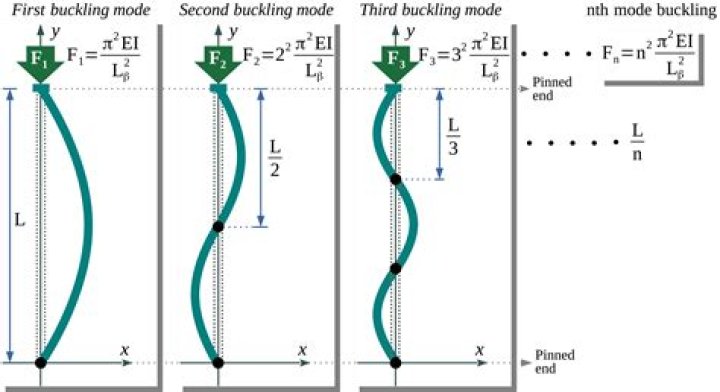

The Euler column formula predicts the critical buckling load of a long column with pinned ends. The Euler formula is P cr = π 2 ⋅ E ⋅ I L 2 where E is the modulus of elasticity in (force/length2), I is the moment of inertia (length4), L is the length of the column.
How do you calculate column deflection?
It begins simply by noting that the internal bending moment in a loaded and deformed column is −Py where P is the compressive load and y is the column deflection. So insert −Py in for M in the beam bending equation, EIy′′=M E I y ″ = M . where A and B are constants determined from the boundary conditions.
How do you calculate effective buckling length?
In order to use the design rules developed for buckling of a pin-ended column in situations where a column is restrained at its ends, the actual length of the column (l) is replaced by its effective length le = kel where ke is called the effective length factor.
How do you determine if a column will buckle?
If a structure is subjected to a gradually increasing load, when the load reaches a critical level, a member may suddenly change shape and the structure and component is said to have buckled. Euler’s critical load and Johnson’s parabolic formula are used to determine the buckling stress in slender columns.
What is difference between bending and buckling?
So, the difference between bending and buckling is that in bending, the beam undergoes internal stresses but then recovers back after the load is removed. While Buckling is a permanent failure of the structure.
What is the buckling of a beam?
Location of the Load Applied
How to calculate moment of beam?
1) Segment the beam section into parts When calculating the area moment of inertia, we must calculate the moment of inertia of smaller segments. 2) Calculate the Neutral Axis (NA) The Neutral Axis (NA) or the horizontal XX axis is located at the centroid or center of mass. 3) Calculate Moment of Inertia
What is critical buckling load?
Critical Buckling Load. In Euler ‘s equasion is the critical buckling load the force that will initiate a bend in the column, or is it the force that leads to catastophic failure. If we start with the initial assumption that there is some lateral force due to system imperfections to initiate the buckling.
