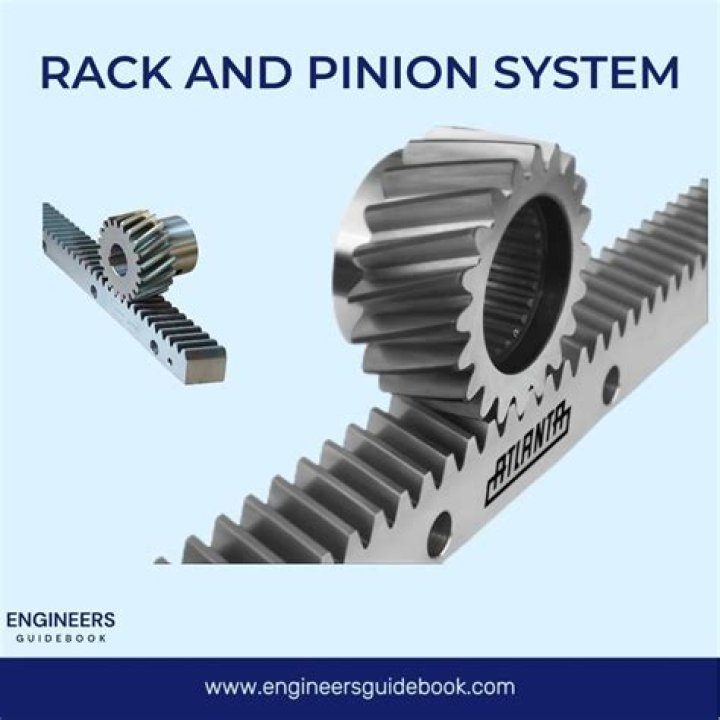

How do you calculate rack and pinion gear?
Calculating Rack-and-Pinion Gear Ratio Instead of counting the number of teeth in each gear, measure the distance the rack moves in inches. Measure the distance from the end of the rack to an arbitrary point, turn the pinion one full revolution and then measure the distance again.
How is rack and pinion pitch calculated?
About CP Racks & Pinions The reference pitch of a metric module is computed by multiplying the number of module by π (3.14159). For example, the reference pitch of m 3 rack is 9.425 mm (3 x π).
How is pinion calculated?
The calculation uses the number of teeth in the ring gear and divides it by the number of teeth in the pinion gear to provide you with a “[result] to 1” ratio. For example, if the pinion gear has 41 teeth, and the ring gear has 11 teeth, the ratio would be calculated as 41/11, which is equal to 3.73 = 3.73:1.
How do you measure rack and pinion length?
Fit the pinion teeth into the teeth of the rack. It should be a perfect fit and the rack and pinion should be compatible. Push the pinion along the rack until it reaches one complete revolution. Measure the distance on the rack to the point where the pinion achieved a single revolution.
How do you calculate modules?
Modulus on a Standard Calculator
- Divide a by n.
- Subtract the whole part of the resulting quantity.
- Multiply by n to obtain the modulus.
How is pinion diameter calculated?
Root Diameter (df) is the diameter of the root circle; its value is: df = m (z – 2.5) or df = de – 2h. Center Distance (dc) is the distance between the shafts of the gear and the pinion; its value is: dc = (D + d) / 2, where “D” corresponds to the pitch diameter of the gear and “d” to the pitch diameter of the pinion.
How do you measure the pitch of a gear rack?
To find the circular pitch of a gear, divide the circumference around the pitch circle (circumference = pi x pitch diameter) by the number of teeth.
How do you calculate steering rack ratio?
A steering ratio of x:y means that a turn of the steering wheel x degree(s) causes the wheel(s) to turn y degree(s). In most passenger cars, the ratio is between 12:1 and 20:1. For example, if one complete turn of the steering wheel, 360 degrees, causes the wheels to turn 24 degrees, the ratio is then 360:24 = 15:1.
How are rack modules measured?
To calculate Rack MOD (Module): a) Measure distance of 10 (ten) Pitches, as shown below b) Divide this number by 10 (ten) c) Then divide the resulting number again by π (pi), this would give us the required Module.
How is gear rack pitch measured?
The pitch of a gear is defined as the distance between two identical points on two adjacent gear teeth. Ideally, it is measured at the pitch line, labeled in Figure 1 as the reference line.
How do you manually calculate modulus?
How do you replace a rack and pinion?
Jack up the car on a lift (dont do this on your normal puncture jack). find the ball joint behind the wheel. If you are not sure, just turn the steering wheel and you will be able to notice the moving parts of the steering gear. unbolt this ball joint (on both sides) and unscrew the tie-rod…
Do I need to replace rack and pinion?
When your mechanic says they need to replace your rack and pinion, they are likely talking about the entire assembly, up to and possibly including the tie rod ends. The rack and pinion is generally a pretty stable part and is not likely to need to be replaced due to general wear and tear unless the car has a very large number of miles.
What is the purpose of a rack and pinion?
The rack and pinion system is a widely-used power steering system. Its straightforward design can be implemented into most power steering systems. The rack and pinion system assists in power steering of many vehicles including minivans , cars and some trucks and sport-utility-vehicles.
What are the parts of a rack and pinion?
Rack and pinion steering is exactly what it sounds like — a rack and a pinion. The rack is a flat, grooved bar that extends horizontally across the bottom of the engine compartment, connecting the left and right front wheels to one another.
