How do you calculate thrust pipe blocks?

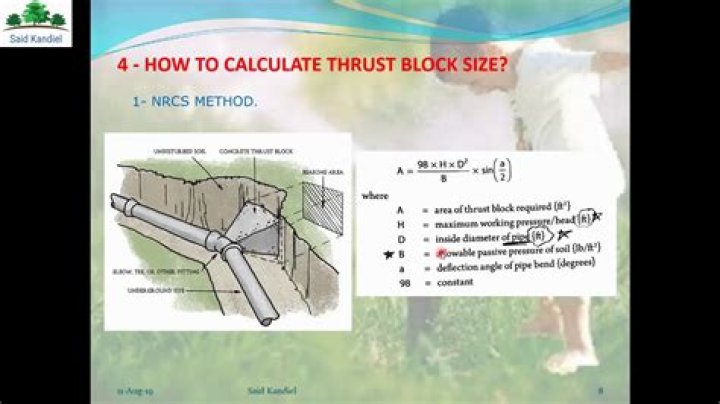

Thrust Force Calculation for Thrust block design Thrust force, F = 2 P A sin (ϕ/ 2) Where: P = design pressure, A = cross-sectional area of the pipe, and ϕ = angle of the bend.
Where are thrust blocks required for irrigation lines?
In efect, the thrust block transfers the load from the pipe to a wider load bearing surface. Thrust blocks are required where fittings are used to change the direction (i.e., at all ties, elbows, wyes, caps, valves, hydrants and reducers) of the pipeline.
How do you make a thrust block for a pipe?
Content
- Calculate the magnitude of the force.
- Estimate ground conditions.
- Identify direction of the design forces.
- Determine ground properties.
- Determine thrust reaction factor.
- Estimate block size for horizontal bends.
- Calculate ultimate horizontal ground resistance.
- Calculate thrust block size to resist horizontal forces.
Does PVC pipe require thrust blocks?
Test has proven that solvent welded joints can defy the forces working to detached them, even at more than 2-1/2 times the pressure rating of the pipe. This holds true for all size, class or schedule of PVC pipe and fittings. That unqualified answer is; thrust blocking is not needed on solvent welded joints.
What are concrete thrust blocks?
Thrust blocks are concrete pipe thrust restraints or anchors placed up against underground pipe fittings to prevent movement of underground pipes from thrust forces in water mains.
How do you calculate thrust force?
- Thrust is the force which moves an aircraft through the air. Thrust is generated by the engines of the airplane.
- F = ((m * V)2 – (m * V)1) / (t2 – t1)
- F = m * a.
- m dot = r * V * A.
- F = (m dot * V)e – (m dot * V)0.
- F = (m dot * V)e – (m dot * V)0 + (pe – p0) * Ae.
Why thrust block is required?
In effect, thrust blocks transfer the load from the pipe to a wider load-bearing surface. Thrust blocks are required where fittings are used to change the direction (i.e., at ties, elbows, wyes, caps, valves, hydrants, and reducers) of buried piping systems.
Are thrust blocks required for HDPE pipe?
Q. 29 Are thrust blocks required with HDPE pipelines? No. HDPE pipe and fittings joined by heat fusion are self-restrained in all applications, and therefore do not require thrust blocks, provided the entire system is fused.
What is the difference between anchor block and thrust block?
The longitudinal thrust from t puddle flange clamped onto th to the pipe (for MSCL pipes). A thrust block is a simple u than around, the pipe special. anchor block is a reinforced concrete block which is cast ght piece of pipe, and which is designed to restrain the pipe dinal movement. Refer to Drawing 98-0021-01.
What is a thrust block in piping?
Thrust blocks prevent buried piping from moving when pressure and thermal load are applied. In effect, thrust blocks transfer the load from the pipe to a wider load-bearing surface.
How big is a thrust block?
Thrust blocks and anchors must be large enough to withstand the forces tending to move the pipe, including those of momentum and pressure as well as forces due to expansion and contraction. Area of thrust blocks for dead ends and tees shall be 0.7 times the area of block required for a 90-deflection angle of pipe bend.
When are thrust blocks required?
Thrust blocking prevents main line from moving when the pressure load is applied. In efect, the thrust block transfers the load from the pipe to a wider load bearing surface. Thrust blocks are required where fittings are used to change the direction (i.e., at all ties, elbows, wyes, caps, valves, hydrants and reducers) of the pipeline.
What is thrust block construction?
Thrust Block. What is a Thrust Block. Definition of Thrust Block in Construction. The term thrust block refers to any type of element that will absorb, or take the thrust that occurs when a liquid is forced through a conduit system.
What are thrust blocks?
The thrust block itself consists of a housing which contains a number of wedge-shaped white metaled pads with generous helical oil grooves cut into them. The pads are arranged and fixed around a steel support, holding them against a machined collar on the drive shaft.
What is a concrete thrust block?
Most commonly found in drainage applications, a thrust block is a concrete pipe restraint. The block is utilized to prevent pipe joints separating under the force of carried fluids traversing a bend or tee junction. Thrust block dimensions need to be calculated based on the type of fluid being carried, the pipe diameter,…
