How do you calculate time of concentration?
When the drainage area consists of several different types of surfaces, time of concentration is calculated by adding the time for each type of flow along the flow path from the watershed divide to the watershed outlet. Time of concentration is generally applied only to surface runoff.
What is meant by time of concentration?
Time of concentration (Tc) is the time required for runoff to travel from the hydraulically most distant point in the watershed to the outlet.
What is time of concentration in rational method?
For a given watershed, the time of concentration is the time required for rainfall landing on the farthest point of the watershed to reach the watershed outlet. The time of concentration should be used as the duration of the design storm for calculating peak storm water runoff rate with the Rational Method equation.
What is the minimum time of concentration?
5 minutes
Minimum Time of Concentration Use a minimum tc value of 5 minutes for urbanized areas and a minimum tc value of 10 minutes for areas that are not considered urban. Use minimum values even when calculations result in a lesser time of concentration.
What do you mean by time of concentration and how it is determined?
Time of concentration is a concept used in hydrology to measure the response of a watershed to a rain event. It is defined as the time needed for water to flow from the most remote point in a watershed to the watershed outlet.
What is time of concentration What is its role in determination of the storm water runoff?
2) The time of concentration is the critical value in determining the design rainfall intensity and is equal to the time required for water to flow from the hydraulically most distant point in the watershed to the point of design. 3) The runoff coefficient, C, is uniform during the entire duration of the storm event.
What is rainfall time of concentration?
What is lag time in hydrology?
Lag time – the time taken between peak rainfall and peak discharge. Rising limb – shows the increase in discharge on a hydrograph.
What is the use of time of concentration?
Time of concentration is a concept used in hydrology to measure the response of a watershed to a rain event. It is defined as the time needed for water to flow from the most remote point in a watershed to the watershed outlet. It is a function of the topography, geology, and land use within the watershed.
What are the factors affecting time of concentration?
It is one of the most important parameters for determining timing of direct runoff response of a watershed to precipitation. The time of concentration is correlated to different watershed parameters such as watershed area, main channel length, basin slope, soil type, and vegetation (roughness) [McCuen 1989].
Why is concentration of time important?
It is defined as the time needed for water to flow from the most remote point in a watershed to the watershed outlet. Time of concentration is useful in predicting flow rates that would result from hypothetical storms, which are based on statistically derived return periods through IDF curves.
Is lag time the same as time of concentration?
In hydrograph analysis, lag is the time interval be- tween the center of mass of the excess rainfall and the peak runoff rate (fig. 15–3). Time of concentration (Tc) is the time required for runoff to travel from the hydraulically most distant point in the watershed to the outlet.
How to calculate time of concentration?

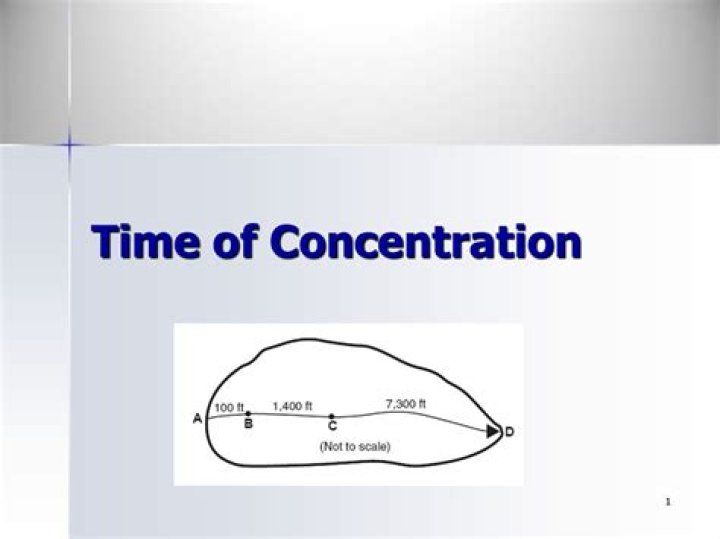

The time of concentration along our sample hydraulic path is simply the sum of the travel times for the overland flow, shallow concentrated flow, and channel flow. Tc = Lo + Lsc + Lc In our example, the time of concentration is calculated as follows: Tc = 31.5 + 3.57 + 0
What is time of concentration?
Time of concentration is a concept used in hydrology to measure the response of a watershed to a rain event. It is defined as the time needed for water to flow from the most remote point in a watershed to the watershed outlet.
What is a sentence for hydrology?
hydrology in a sentence. So instead of being buried in concrete, excised from the daily life of the city and only experienced by municipal workers, urban hydrology is visibly, even prominently, incorporated into the surface fabric of the city.
What is study of hydrology?
Hydrology is the study of water on Earth. Hydrologists look at the properties of water, the ways in which it is distributed, and the effects of water on the Earth’s surface, with a goal of understanding the complex and interconnected systems which dictate life on Earth.
