How do you choose heat shrink sleeves?
Steps For Choosing the Right Size of Heat Shrink Tubing
- Step One: Calculate the Diameter if the Heat Shrink Tubing.
- Step Two: Calculate the Shrink Ratio of the Tubing.
- Step Three: Calculate the Thickness of the Tubing.
- Step Four: Calculate the Length of the Tubing.
What material is heat shrink tubing?
polyolefin
Heat-shrink tubing was invented by Raychem Corporation in 1962. It is manufactured from a thermoplastic material such as polyolefin, fluoropolymer (such as FEP, PTFE or Kynar), PVC, neoprene, silicone elastomer or Viton.
Is heat shrink tubing waterproof?
Is Heat Shrink Tubing Waterproof. Not all heat shrink tubings are waterproof. Although they do keep out moisture when activated, there are specifically designed marine-grade heat shrinks which you can order. These items have a layer of adhesive inside the tubing which will melt and seal the cable all around.
What sizes does heat shrink come in?
Heat shrinkable tubing is available in 2:1, 2.5:1 or 3:1 shrink ratios meaning the tubing has been expanded to twice, two and a half times or three times its fully recovered size. The greater the size variations of the underlying materials being covered, the larger the shrink ratio required.
Can I use electrical tape instead of heat shrink?
Electrical tape can also be referred to as friction tape or insulating tape. Typically, electrical tape is not as durable as heat shrink tubing. It does, however, help to maintain electrical continuity, cover exposed wires, and connect multiple wire types.
Can you use a lighter on heat shrink?
Hair dryers, soldering irons, lighters and butane torches are all valid options for activating heat shrink tubing. They rarely give perfect results and are tedious to use, but they are better than nothing.

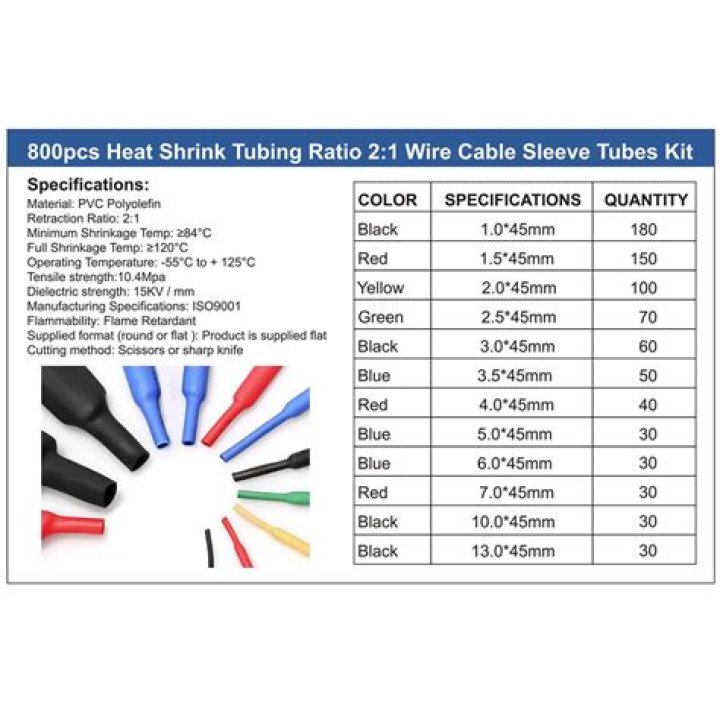

What are sizes of heat shrink?
What Size Heat Shrink Tubing Do You Need? 5mm tubing with a .198 inch diameter is the recommended heat shrink tubing size for 12 gauge wire The recommended heat shrink tubing size for 14 gauge wire is the same as that for 12 – 5mm, with a .198 inch diameter For 16 gauge wire, 3mm heat shrink tubing with a 2:1 shrink ratio and a .118 inch diameter is recommended
What is a good temp to heat shrink at?
Some Heat shrinks are specially designed to be used in harsh environments and operate at even at -65°C to +260°C and can also act as good protection against water and moisture. The ATUM, CGAT, C-Wrap, Rayseal, HTAT, and SCL are some popular sleeves that can be used in harsh environments
What material is used for heat shrink?
Often confused with stretch film, heat shrink wrap consists of a wide variety of plastic materials designed to shrink after heat is applied. Common plastics used to produce heat shrink wrap are: polyolefin, PVC, polyethylene, and polypropylene. Heat shrink wrap is used as a packaging solution all around the world.
What is heat shrink tubing and how is it used?
Heat-shrink tubing (or, commonly, heat shrink or heatshrink) is a shrinkable plastic tube used to insulate wires , providing abrasion resistance and environmental protection for stranded and solid wire conductors, connections, joints and terminals in electrical work.
