How do you create a flowchart in Excel?

How to Make a Flowchart in Excel

1. Open the Excel worksheet where you want to add a flowchart.
2. Go to the Insert tab.
3. In the Illustrations group, select SmartArt to open the Choose a SmartArt Graphic dialog box.
4. Choose Process in the left pane.
5. Select the flowchart template you want to use.
6. Select OK.

What does a flowchart contain?

Elements that may be included in a flowchart are a sequence of actions, materials or services entering or leaving the process (inputs and outputs), decisions that must be made, people who become involved, time involved at each step, and/or process measurements.

What must be used while drawing a flowchart?

A flowchart is simply a graphical representation of steps. It shows steps in sequential order and is widely used in presenting the flow of algorithms, workflow or processes. Typically, a flowchart shows the steps as boxes of various kinds, and their order by connecting them with arrows.

What is used for drawing a chart in Excel?

To insert a chart:

1. Select the cells you want to chart, including the column titles and row labels. These cells will be the source data for the chart.
2. From the Insert tab, click the desired Chart command.
3. Choose the desired chart type from the drop-down menu.
4. The selected chart will be inserted in the worksheet.

Can I draw in Excel?

Whether you use a digital pen, touchscreen, or mouse, the drawing features in Office can help you add notes, create shapes, edit text, and more. The Draw tab is available in Word, Excel, and PowerPoint.

How do I paint in Excel?

Use the Format Painter

1. Select the text or graphic that has the formatting that you want to copy.
2. On the Home tab, click Format Painter.
3. Use the brush to paint over a selection of text or graphics to apply the formatting.
4. To stop formatting, press ESC.

Which program is best for flowcharts?

The 7 Best Flowchart Software of 2021

• Best Overall: Lucidchart.
• Best for Beginners: Gliffy.
• Best Value: SmartDraw.
• Best for Advanced Features: Edraw Max.
• Best for Integration: Cacoo.
• Best for Collaborating: Creately.
• Best for Mac: OmniGraffle.

  Which Microsoft program is best for flowcharts?

  In Microsoft Word, PowerPoint, or Excel, you have two options for creating flowcharts. You can either use SmartArt or Shapes from the Insert tab. For example, SmartArt is selected below in Word 2013.

  How do you make a good process flow chart?

  Five Tips for Better Flowcharts

  1. Use Consistent Design Elements. Shapes, lines and texts within a flowchart diagram should be consistent.
  2. Keep Everything on One Page.
  3. Flow Data from Left to Right.
  4. Use a Split Path Instead of a Traditional Decision Symbol.
  5. Place Return Lines Under the Flow Diagram.

  Can you free draw in Excel?

  Drawing in excel means making a shape in excel, now excel has provided us with many tools for drawing, some of them are the predefined drawings or predefined shapes and also there is option for free form of drawing where user can design a drawing by using mouse, this is available in the shapes in the insert tab of …

  How do I draw 2019 in Excel?

  Adding the Draw tab to the Ribbon

  1. Right-click the Ribbon and select Customize the Ribbon.
  2. Check the box next to Draw, then click OK.
  3. The Draw tab will now be available in the Ribbon.

  What is the syntax of if in Excel?

  Use the IF function, one of the logical functions, to return one value if a condition is true and another value if it’s false. For example: =IF(A2>B2,”Over Budget”,”OK”) =IF(A2=B2,B4-A4,””)

  How do I make a free flow chart?

  How to make a flowchart online

  1. Gather information and consult with stakeholders.
  2. Select a template or open a blank document.
  3. Drag and drop flowchart shapes.
  4. Connect the shapes in the proper sequence.
  5. Share the flowchart, analyze, and collaborate on improvements.

  Does Microsoft have a flow chart tool?

  Flowchart Maker and Diagramming Software | Microsoft Visio.

  What are needed in creating flowchart?

  How to make a Flowchart in Word

  • Open a blank document in Word.
  • Add shapes. To begin adding shapes to your flowchart in Word, you have two options.
  • Add text. Add text to a SmartArt graphic by clicking the filler text and begin typing.
  • Add lines.
  • Format shapes and lines.

    Is it better to create a flowchart in Word or Excel?

    The biggest advantage that Excel has over Word is the drawing canvas. Microsoft Word has a drawing area limited to one page. This is fine if you are doing a small flowchart, but business processes are often complex, so you want a drawing canvas that lets the flowchart easily span multiple pages.

    What office program is best for flowcharts?

    Of the standard Microsoft Office applications – Excel Word, PowerPoint – Excel is the most powerful and user friendly for creating flowcharts (disclosure: we make a flowchart automation add-in for Excel), but in some cases creating flowcharts in Word is handy.

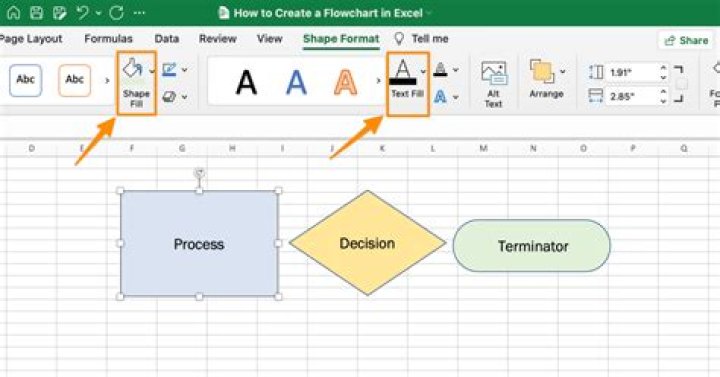

    How to draw a flowchart in Microsoft Excel?

    1 On the Insert tab, in the Illustrations group, select Shapes : 2 On the Shapes list, in the Flowchart group, choose the item that you prefer: 3 To add text in the selected shape, just double-click in it and enter the text. 4 To connect shapes, do the following:

    Is there a yes or no flow chart in Excel?

    Yes or no flowchart in excel. Excel spreadsheets contain densely packed datadata that is useful but difficult to interpret. Flowcharts can help illustrate the relationships between various data points adding clarity to your spreadsheets.

    How does AutoSize work in a flowchart in Excel?

    Excels idea of flow chart shape autosizing is to resize the shape so that all the text fits on one line. Depending upon whether the users answer is yes or no they will decide which shape they need to move towards next within the flowchart. Draw a flowchart in excel.

    How to connect two shapes in a flowchart?

    To connect shapes, do the following: 1 On the Insert tab, in the Illustrations group, click on the Shapes list and then select one of the connectors in the Lines group: 2 Select the beginning point in a border of the first shape and the ending point in a border of the second shape:
