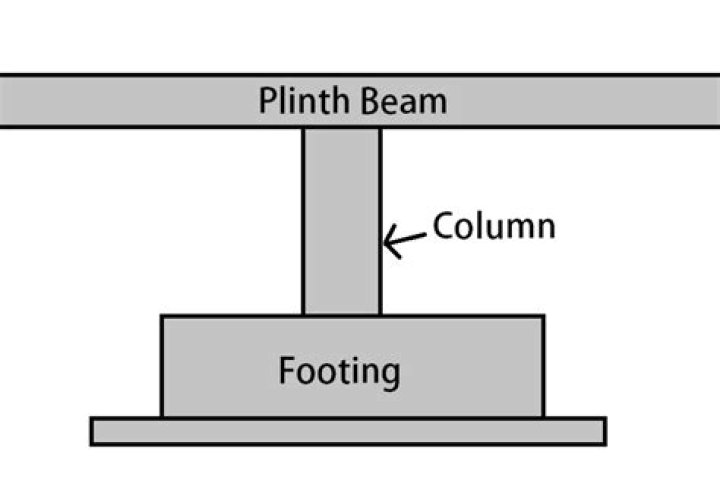

How do you find the shuttering of a plinth beam?
- Take the cross-section of beam and measure the lengths of the two sides and base of beam.
- Sum the three measurements.
- Measure the span of the beam.
- Multiply the span length by sum of the three measurements (beam base two vertical sides) gives the shuttering area of beam.
When should shuttering be removed from beam?
Complete slab shuttering should be removed after 10 days. Beams removal of sheeting required 8 days. Beams and arches complete removal of shuttering required 14 days. If beams and arches are of span more than 6 meter, then shuttering removal time should be 21 days.
What is beam shuttering?
Formwork (Shuttering) for Different Structural Members -Beams, Slabs, Columns, Footings. Formwork (shuttering) is a temporary mould to provide support to fresh concrete when placed in structural member until the concrete has set.
Which cement is best for plinth beam?
Portland Pozzolana Cement (PPC) is the ideal cement to be used as it hydrates slowly and gives high final strength.
How do you calculate footing shuttering?
2. Rectangular Footing:
- Volume of concrete = Area of sq. footing x Depth of sq footing. Area of sq. footing = L x B = 1 x 0.7 = 0.7 m² Volume of concrete = 0.7 x 0.25 = 0.175 m³.
- Shuttering area = 2 (L + B) x D. = 2 (1+0.7) x 0.25. = 0.85m²
- Bitumen paint area = Shuttering area + (Top area of footing – column area)
Is formwork and shuttering the same?
Formwork is a temporary structure which is used as a mould to pour the concrete. Formwork may be the horizontal or vertical arrangement, made to keep concrete in position until it gains desired strength and shape. Shuttering is a part of formwork. Formwork for columns, retaining walls, footings are known as shuttering.
How many times shuttering can be used?
The shuttering Ply can reuse for a maximum of 10 times, and it depends upon how you use this at the site and you remove and store it, also depend upon plywood density.
How many days shuttering should be removed?
The rapid hardening cement the beams and arches complete removal of shuttering required 5 to 8 days. The shuttering removals time should be 8 to 10 days if the span of a beam and arches is more than 6 meters.
Which shuttering is best?
Steel shuttering plate is the best type of shuttering because this is watertight shuttering which can bear the load of cement concrete placed on it. This shuttering can be used for horizontal, vertical or any other shape required for the work. It gives a leveled surface which has a good appearance.
What is the cost of shuttering?
Shuttering rate per sq ft:– in India, labour cost for shuttering only is range between Rs 20 to Rs 25 per sq ft, with bar bending it will be Rs 25 to Rs 30 per sq ft and for shuttering + bar bending + labour cost to pour concrete it will be Rs 40 to Rs 50 per sq ft for normal residential work with shuttering materials …
Why is it mandatory to provide plinth beam?
It is mandatory to provide plinth beam in areas that prone to earthquake. Construction of plinth beam above the natural ground is another application of this type of beam.
What size steel bars are used for plinth beams?
Steel Bars Used for Plinth Beam It is recommended to provide two bars with minimum diameter of 12mm at the bottom of the beam. Similarly, two bars with minimum diameter of 10mm shall be provided at the top of the plinth beam. Reinforcement bars should be protected by 25mm concrete cover.
How far below the existing ground level should a plinth be?
The bottom of the peripheral plinth beam should be on kept 15cm below the existing ground level and necessary plinth masonry should be done above the beam. The size (b x d) of the beam.
How to build a concrete parking lot plinth?
Maintain a proper water-cement ratio. Compact the concrete by a needle vibrator. The plinth level is first finalized with respect to the parking ground level. The plinth beam work procedure can be cast by adopting the usual procedure of propping and shuttering. Tie beams may be cast on masonry work at the plinth level.
