How do you read a combustion analyzer?

The reading on the combustion analyzer will display the oxygen percentage as a percent of the total flue gas volume. For instance, a reading of 4% O2 means oxygen comprises 4% of the volume of flue gases. A typical reading would be 2% to 6% (see Figure 2).

What are the different types of gas analyzers?

Types of Gas Analyzers

• NDIR Analyzers: Non-dispersive infrared (NDIR) analyzers use infrared sensors to analyze gases such as carbon dioxide (CO2), carbon monoxide (CO), methane (CH4), and sulfur dioxide (SO2). Learn More.
• Electrochemical Gas Analyzers.
• Dew Point Analyzers.
• Thermal Conductivity Analyzers.

How is combustion measured?

COMBUSTION ANALYSIS To measure gas concentration, a probe is inserted into the exhaust flue and a gas sample drawn out. Exhaust gas temperature is measured using a thermocouple positioned to measure the highest exhaust gas temperature. Soot is measured from a gas sample drawn off the exhaust flue.

Why is Combustion Analysis important?

Combustion analysis is key for the correct control and operation of combustion processes. By analyzing combustion parameters, a number of benefits can be achieved, including greater efficiency resulting in reduced fuel costs, lower pollutant emissions, and reduced expenses.

What causes high CO readings on boiler?

If the oxygen level is set too low and something changes the combustion process can become ‘fuel rich’ as there is insufficient oxygen for all the fuel to burn. This can cause high levels of CO to be generated and in the extreme enough fuel to enter the boilers flue and ignite (explode) outside the combustion chamber.

What are gas analyzers?

A gas analyzer is an analytical instrument used to identify the concentration of known gases in an atmosphere that contains multiple gases. It is used to monitor and assist in areas such as process safety improvement, quality studies, efficiency analysis, and emissions monitoring.

How does combustion analysis work?

In combustion analysis, a sample of known mass is combusted, and the resulting carbon dioxide and water vapor are captured and weighed. The relative amounts of carbon, hydrogen, and oxygen in the starting compound can be determined from the masses of the products of the combustion reaction.

What is good combustion efficiency?

Combustion efficiency is the calculation / measurement, in percentage, of how well your equipment is burning a specific fuel….Combustion Processes and Their Combustion Efficiency Ranges.

What is called combustion?

Combustion is another word for burning. In a combustion reaction, a fuel is heated and it reacts with oxygen. When fuels burn in combustion reactions, they release useful thermal energy (heat). Combustion reactions are used to heat our homes, power most cars, and to generate a lot of our electricity.

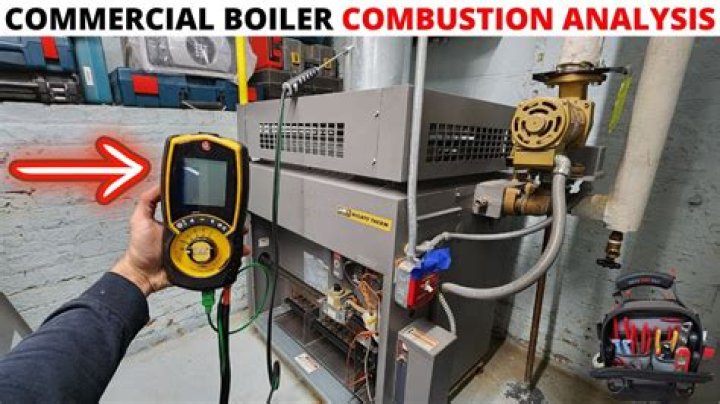

What is boiler combustion analysis?

Boiler Combustion Analysis 101. A boiler is simply a device designed to burn a fuel and then transfer the heat from the combustion process into the water that will heat the space. Inherent in this process is the transfer of any other products of combustion (the bunch of unwanted chemicals) to somewhere will it won’t hurt anyone.

What is HVAC combustion analysis?

Traditionally, HVAC technicians performed a combustion analysis by first using a special probe to take a sample of the flue gases and then having that sample analyzed at a lab. Today, combustion analysis can be performed much more accurately and quickly using a tool called the digital combustion analyzer.

What is a combustion test?

A combustion test evaluates fuel operated appliances to ensure efficient and safe function. In addition to assessing general appliance function, combustion tests analyze the venting systems responsible for eliminating combustion products and any fuel lines that deliver oil or gas to the appliance.

What is a gas analyzer?

Gas Analyzer is an instrument used to measure the concentration of a known gas in given mixture of gases from a process / stream.
