How do you release a well pump?
Again, this work is best left to professionals.
- Step 1: Clear the Area. Shut off the breaker to the pump.
- Step 2: Remove the Well Cap. Use a 3/4-inch socket and ratchet to remove the nuts from the cap on top of the casing.
- Step 3: Connect the T-Handle Tool.
- Step 4: Remove the Adapter.
- Step 5: Pull the Pump.
How far down is a Pitless adapter?

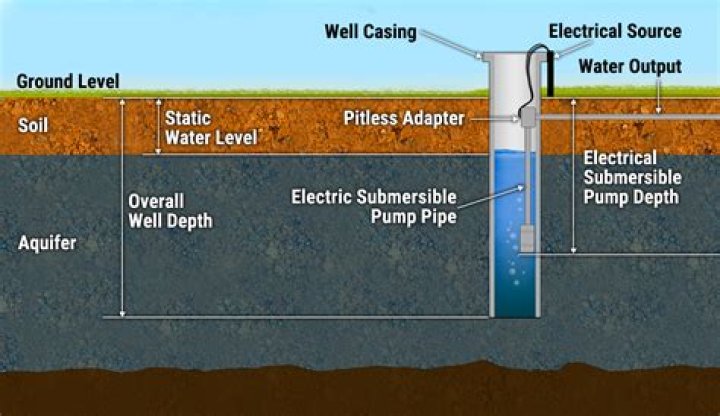

Pitless adapters are a special fitting that attaches to the water well casing below ground about 6 or 7 feet and discharges water through a buried water service pipe. It is buried below the frost line to prevent freezing.
How do I know if my Pitless adapter is leaking?
Make sure you check thoroughly. If you think your pressure loss is due to your pitless adapter leaking, remove the well cap. And see if you can hear any sounds of water flowing. If you hear any sound, it’s due to the leak in your adapter.
How do you open a blocked borehole?
Using dry ice is an ideal and powerful way to clean a borehole without toxic chemicals. Dry ice sinks to the bottom where it boils off and returns into a gas. This forms pressurised carbonated water which increases pressure in the borehole pushing out and opening the borehole up.
How do you remove a stuck well cap?
Try to pry the seal off very carefully with a screwdriver. Use a wrench to loosen any bolts if you have a well cap. These may be along the outside edge of the top of the well cap. Alternatively, there may be set screws on the side of the cap, for which you can use a screwdriver.
Can Pitless adapters freeze?
Help keep your well from freezing with a pitless adapter. A pitless adapter attaches to your well casing to provide a sanitary and frost proof seal between the casing and the water line running to your home. Water from the well is diverted horizontally at the adapter to prevent it from freezing.
How do I know if my Pitless adapter is bad?
It’s important that you’re sure your pitless adapter is leaking before you start taking steps. Fill up your tank until the removed pitless adapter and check its condition. If the water doesn’t leak out of the pump, the problem is on your pitless adapter.
How do you install a pitless service line on a well?
Make sure it is aligned with the trench for the service line and that it is at the proper bury depth to ensure the service line won’t freeze. Using a hole saw, cut the required hole size, as specified by the pitless adapter manufacturer, through the well casing and remove the burrs. For 1″ pitless adapters, the typical hole saw size is 1-3/4″.
What makes a pitless well adapter a revolutionary addition?
This is a fundamental design difference in and of itself- however, there are a number of improvements that in total make the pitless adapter a revolutionary addition to well technology. First and foremost, the side exit allows the wellhead to be extended above ground.
How do I install the pump seating on the pitless adapter?
Remove the safety pin to allow removal of the elbow “F” portion of the pitless adapter out of the slide “E”. At this point, you can attach the pipe column, which is the drop pipe and submersible pipe, and install the pump seating to the pitless elbow into the slide of the pitless adapter.
What is a pitless water drop pipe adapter?
The primary function of the pitless adapter is to provide a junction for the drop pipe in the well to connect to the water line running to the house. As you can see from Martinson’s original patent diagram, the main modification with the pitless adapter is that the drop pipe exits through the side of the casing rather than through the top.
