How do you replace a 7 pin trailer connector?
Detailed Steps for Replacing 7-pin Plug:
- Cut off the old plug and expose wires.
- Remove shielding from all wires.
- Insert cord into plug and attach center wire.
- Connect cord wires to plug terminals.
- Seal plug assembly.
- Secure plug housing.
- Test your new plug.
What is the best way to connect trailer wires?
Helpful Expert Reply: Using butt connectors such as # 05731-5 is probably the fastest way to connect wires. Using a heat shrink butt connector such as # DW05744-5 would be a better, longer lasting connection. The white ground wire will need to secure to the trailer frame using a self tapping screw like # FA1131822.
Does a 7 pin trailer plug charge battery?
Since your truck has a 7-way connector, you could maintain the power to the battery but not charge it. To maintain power to the battery, you would need to run a wire from the positive terminal on the trailer battery to the power wire on the 7-way.
What color is ground on a 7-pin?
white
Make sure your ground wire (typically white) is securely attached to the frame on both the truck and trailer side, preferably at more than one location on the frame!
What size wire do I need for a 7 way trailer plug?
The minimum suggested wire size for a 7-way trailer plug is 16 gauge for the turn signals, brake lights, reverse lights, and running light wires. The suggested minimum for the ground, brake power, and battery hot lead wires is 12 gauge.

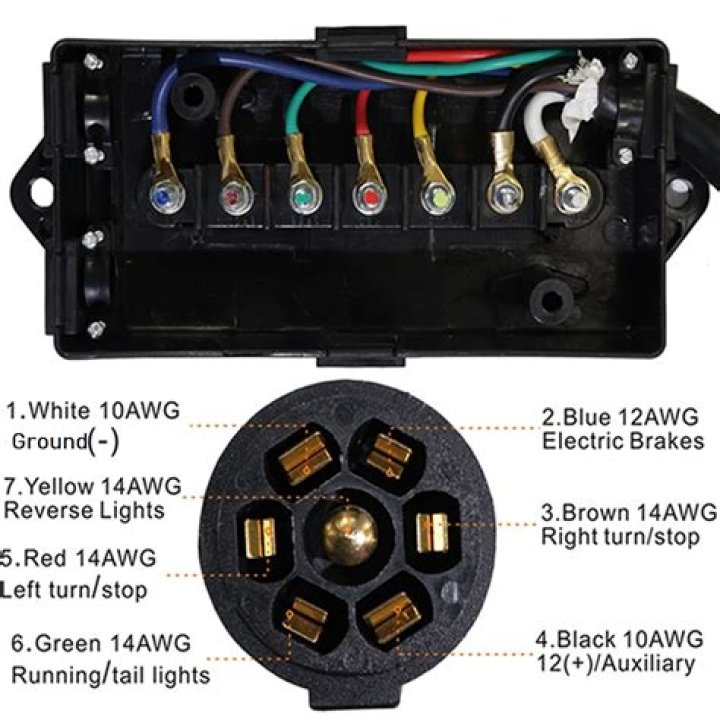

What is the color code for 7-way trailer wiring?
What is the Color Code for 7-Way Trailer Wiring? 1 Green: Right turn/brake light 2 Yellow: Left turn/brake light 3 Brown: Tail/running lights 4 White: Ground wire 5 Blue: Brake controller output 6 Black: Battery hot lead 7 Purple: Reverse lights
How do you wire a 7 way trailer without a junction box?
Secure any excess wire with wire clips. WITHOUT JUNCTION BOX If you’re not using a junction box and are simply connecting the new 7-way to your existing wiring, you can use butt connectors and a heat gun to make your wiring connections. Secure any excess wire with wire clips. Now that our trailer is hooked up, it’s time to wire our vehicle.
How do you connect a 7 Way Plug to a car?
IF YOU HAVE NO CONNECTOR If your vehicle lacks any kind of connector, the easiest way to install a 7-way plug is to install a 4-way and use an adapter. For help installing a 4-way connector, view our how-to guide here. Also take the time to confirm the function of your vehicle wires if you are splicing or clamping wires together.
