How do you wire a marine fuel gauge?
Wiring a fuel gauge is much the same as wiring any other gauge on your boat: one wire comes from the ignition to the instrument, one wire comes from the sensor to the instrument, one wire comes to the instrument light and one wire from the instrument goes to the boat’s common ground.
How do you wire a fuel gauge?
How to Wire Auto Meter Fuel Gauges
- Select an appropriate mounting location for your new gauge.
- Connect the end of the “-” wire to a bare-metal surface on the vehicle.
- Find a power-carrying wire onto which to mount the “+” wire.
- Connect the “S” wire to the fuel-sender signal wire you removed from the stock fuel gauge.
Why does my boat fuel gauge stays on full?
A fuel gauge that only reads full may be caused by a faulty fuel gauge resistor sending the full voltage to the fuel gauge at all times. Another issue may be a defect in the wiring from the fuel sending unit to the fuel gauge causing a shorted signal, or a bad ground wire to the grounding terminal.
How does a 2 wire fuel sender work?

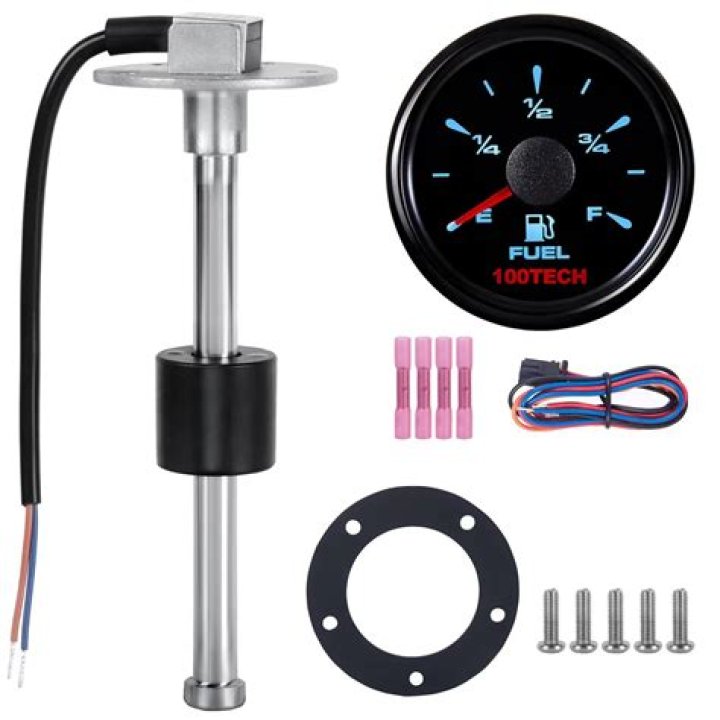

It’s a small round plate with two wire connections. The sender changes resistance (ohms) variably as the float moves from full (up) to empty (down). Changes in resistance move the gauge needle. The sender uses two wires: black for the ground and pink for the sender, per American Boat and Yacht Council standards.
How do I know if my boat fuel gauge is bad?
Look for a “no resistance” reading between the ground on the sender and your boat’s battery ground. If your ground is bad, fix it. If the ground proves good, use your jumper wire to short the sender positive terminal to the ground terminal. The gauge needle should peg to “full.” If it does, your sender wire is OK.
Why is my fuel gauge not working on my boat?
Move to the fuel tank and locate the wire connectors attached to the fuel level indicator plate. Wiggle the wires and see if the gauge moves. If the gauge does not move, then remove the two wires. If the gauge moves, then your problem is with the fuel level indicator in the fuel tank and it will need to be replaced.
How do you test a fuel gauge on a boat?
Check for voltage and ground at the gauge by connecting a test light or multimeter (set to DC volts) to the gauge terminals. With the meter’s red wire to the I terminal (positive, ignition) and black to the G terminal (ground), the meter should read at least 12 volts.
Why do boat gauges stop working?
There are five items that will cause a boat fuel gauge to not work. The fuel gauge itself, the power to the gauge, the fuel sender, the ground to the system, or the fuel sending wire. These systems will need to be tested individually to fix the gauge.
What causes the fuel gauge not to work?
What Causes The Fuel Gauge Not To Work? An inaccurate fuel tank reading is most commonly caused by the sending system which reads the fuel tank level and sends the reading to the gauge. Issues can also stem from a bad gauge, blown fuses, or corroded wiring. You can self-test all of these parts at home with a few tools.
