How do you wire a picture eye garage door opener?

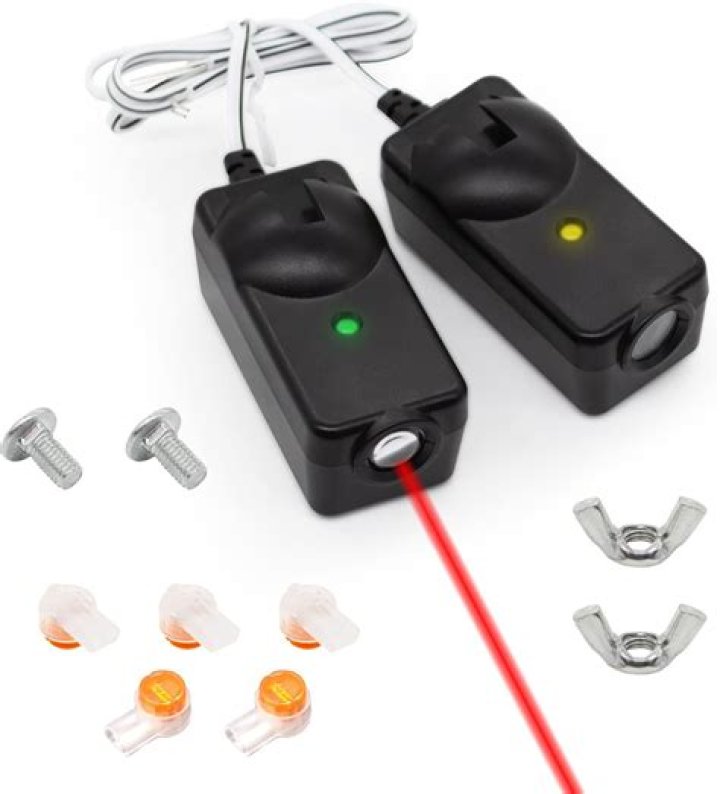

Strip 7/16-inch of insulation from each solid-white and white-with-black-stripe wire on both sensors. Twist together the two white-with-black-stripe wires from both sensors. Twist together the two solid-white wires from both sensors. Connect the two white-with-black-stripe wires to screw terminal 3 on the motor unit.
How do you test a 3 wire photocell?
To check a photocell, use a digital multimeter. Turn the multimeter on, and place it on the setting for resistance. Resistance is usually indicated by the Greek letter omega. If the multimeter is not auto-ranging, change the knob to a very high level, such as megaohms.
How do I wire a photocell outside light?
Connect one black wire on the photocell to the black wire that comes from the building. Be sure to twist the exposed copper wire so that it forms a tight connection. Connect the second black wire on the photocell to the black wire on your light fixture, making sure that the copper wire is twisted together completely.
How do you test a sensor on a picture?
Touch the red probe of the meter to the red wire of the sensor and the black probe of the meter to the sensor’s black wire. Wave your hand back and forth in front of the sensor. If the photocell sensor is working properly the switch will activate and the needle on the meter will move upward.
Does a photocell need electricity?
A photocell is a light-to-electrical transducer, and there are many different types available. Light radiation carries energy, and the amount of energy carried depends on the square of the amplitude of the wave. In addition, the unit energy depends on the frequency of the wave.
How to wire photo sensor?
Turn off the circuit breaker to your outside light.
How to wire a motion detector?
Before starting anything,ensure that the main power is turned off.
What is a photo control sensor?
The LightSync Photo Sensor monitors light levels and transmits data across the LightSync to the lighting control panels. Each sensor has 8 individual set points for on or off control with a selectable dead-band and is programmable to control any or all relays, groups, or presets.
