How do you wire an alternator voltage regulator?
How to Wire an Alternator Voltage Regulator
- Open the hood of your car.
- Remove the black battery cable from the car’s battery terminal using a wrench.
- Locate the voltage regulator.
- Find the multi-wired harness nearby the alternator and voltage regulator.
- Insert the plug into the socket on the voltage regulator.
Does the voltage regulator control the alternator?
The alternator is a generator that produces Alternating Current (AC), similar to the electrical current in your home. A VOLTAGE REGULATOR regulates the charging voltage that the alternator produces, keeping it between 13.5 and 14.5 volts to protect the electrical components throughout the vehicle.
Which terminal on the alternator is used to turn the voltage regulator on?
S terminal – Senses battery voltage. IG terminal – Ignition switch that turns the voltage regulator on.
What does R and F mean on an alternator?
Field. For externally regulated alternators. FR. Field Regulation. Voltage Signal from the ECU.
What is alternator voltage regulator wiring diagram?
Alternator Voltage Regulator Wiring Diagram – wiring diagram is a simplified tolerable pictorial representation of an electrical circuit. It shows the components of the circuit as simplified shapes, and the capability and signal links along with the devices.
What are the wires on a 3 wire alternator?

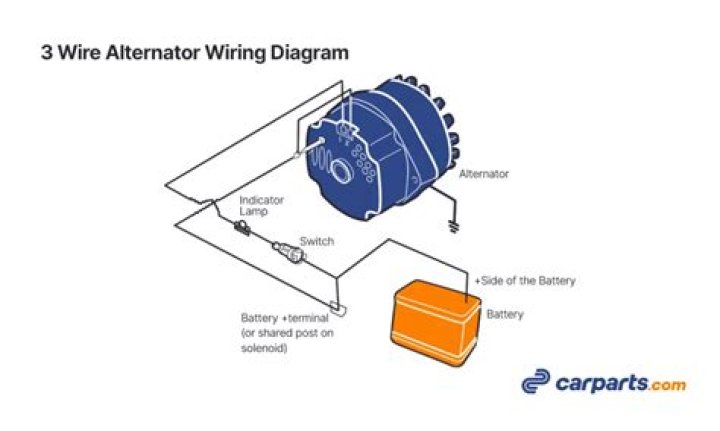

3 Wire Alternator Wiring Diagram This is a three-wire alternating wiring diagram showing the connections between the different components of a circuit. The circuit comprises three main wires: battery positive cable, voltage sensing wire, and ignition wire. The ignition input wire is attached to the engine.
What does a field terminal do on a car alternator?
Field or ignition terminal: Allows battery voltage from the ignition to flow to the alternator’s field coil during startup. Electronic voltage regulators have been used on many cars since the mid 1970s. Refer to the diagram below if you’re working on three-wire connections.
How does an alternator detect voltage?
The ignition input wire is attached to the engine. It conducts electricity from the engine to the alternator while the voltage detecting cable senses the voltage and is attached to the rectifier. Such alternators are multi-purposed and have built-in voltage rectifiers for power sensing.
