How does a gas discharge tube work?
A gas- discharge tube is usually a glass tube with two electrodes sealed through its walls. When a voltage is applied to the two electrodes and the pressure of the gas in the tube is reduced, eventually a pressure is reached at which a current flows, and the gas begins to glow.
How does a GDT work?
Essentially a voltage dependent switch, the GDT maintains a high impedance off-state until a voltage exceeds the device’s sparkover voltage. When the surge event subsides and the system voltage returns to normal levels, the GDT will reset into its high impedance (off) state.
Why is gas used in discharge tube?
The gas tends to be used up during the tube operation, by several phenomena collectively called clean-up. The gas atoms or molecules are adsorbed on the surfaces of the electrodes. In high voltage tubes, the accelerated ions can penetrate into the electrode materials.
What is GDT circuit?
GDT’s are special type of gas filled tubes used for wide range of electronic/electrical circuits for providing protection against lightning and other power surges. These tubes basically has two electrodes that are kept inside a gas filled closed envelope.
What is discharge tube explain with diagram?

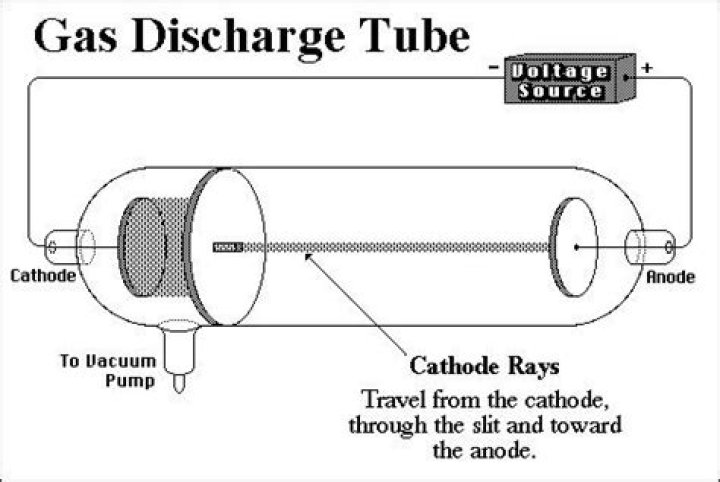

Discharge tube is also called “CROOCK TUBE”. It is made of a glass tube which consists of two metallic plates. One plate is connected to positive terminal of high voltage power supply and the other to negative terminal.
How do I choose a GDT?
The GlobalSpec SpecSearch Database contains the ability to specify important performance characteristics when selecting a GDT.
- Capacitance range is the range of ability a gas discharge tube has to hold an electrical charge.
- Sparkover voltage is the main characteristic defining a GDT.
What is gas discharge tube experiment?
The tube is filled with any gas. In discharge tube experiment, at low pressure and at very high voltage, an electric current is passed. Due to passage of electric current, a stream of rays is passed in the tube originating from cathode.
What is Tvss in electrical panel?
What is a TVSS? A TVSS or Transient Voltage Surge Suppressor protects sensitive electronics from short duration, extreme voltage spikes. This protection is accomplished by clamping the voltage to a safe level before the equipment is destroyed. The excess current is then diverted to the ground.
What is a gas discharge tube arresters?
A gas discharge tube or GDT, is a sealed, glass-enclosed device that contains an inert gas mixture trapped between two electrodes. When a voltage greater than the GDT’s rating is exceeded, the increased voltage ionizes the gas allowing it to conduct electricity and divert the excess voltage to ground.
Which gas is used in discharge tube experiment?
For better results in a cathode tube experiment, an evacuated (low pressure) tube is filled with hydrogen gas that is the lightest gas (maybe the lightest element) on ionization, giving the maximum charge value to the mass ratio (e / m ratio = 1.76 x 10 ^ 11 coulombs per kg).
What happens discharge tube?
In a discharge tube at low pressure the ions which are always present are accelerated by the electric field between the electrodes; positive ions towards the cathode and free electrons and negative ions towards the anode. …
