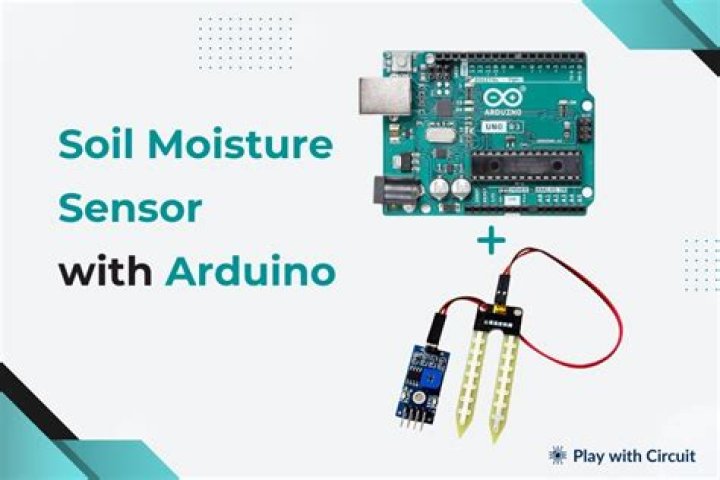

How does a moisture sensor work Arduino?
How Does the Arduino Soil Sensor Work? The soil moisture sensor consists of two probes that are used to measure the volumetric content of water. The two probes allow the current to pass through the soil, which gives the resistance value to measure the moisture value.
How do I connect Arduino to soil moisture sensor?
Connect the two pins from the Sensor to the two pins on the Amplifier circuit via hook up wires. Connect the Vcc from the Amplifier to the 3.3V pin on the Arduino and the Gnd pin to the Gnd pin on the Arduino. Now connect the Analog Data Pin to the A0 pin on the Arduino (Since I’m interested in Analog Data).
How do you measure soil moisture using moisture sensor?
The soil moisture sensor consists of two probes that measure the volume of water in the soil. The two probes allow the electric current to pass through the soil and, according to its resistance, measures the moisture level of the soil.
How do you calibrate an Arduino moisture sensor?
Calibration Procedure: Fill container to 200ml (or any volume) with dry soil. Measure mass of the dry soil in the container. Wet the soil with 10ml of water (this is 5%, but any higher % is okay) Mix the wet soil around to ensure the water is evenly distributed, then refill the container to 200ml.
How does Arduino measure soil moisture?
Soil Moisture Sensor Arduino Code Connect the wires from the other (4-pin) side of the amplifier to an Arduino board. The VCC goes to 5V, GND to ground, A0 to an analog pin, and D0 to a digital Arduino pin. You can then run code found here to get it to output the sensor value via the serial port.
What is the output of soil moisture sensor?
The probe can be powered with an DC supply or batteries in the range of 3.5 to 20 volts. The output is a voltage in the range of 0 to 3V, so any multimeter can be used to measure the moisture level.
What is the output of moisture sensor?
What is a moisture sensor module?
This soil moisture sensor module is used to detect the moisture of the soil. It measures the volumetric content of water inside the soil and gives us the moisture level as output. The module has both digital and analog outputs and a potentiometer to adjust the threshold level.
How do you calibrate a soil moisture sensor Arduino?
Calibration Procedure: Measure mass of the dry soil in the container. Wet the soil with 10ml of water (this is 5%, but any higher % is okay) Mix the wet soil around to ensure the water is evenly distributed, then refill the container to 200ml. Measure the mass of the wet soil.
How to connect soil moisture sensor to Arduino?
Let’s hook the soil moisture sensor up to the Arduino. First you need to supply power to the sensor. For that you may connect the VCC pin on the module to 5V on the Arduino. However, one commonly known issue with these sensors is their short lifespan when exposed to a moist environment.
Why is the do pin on my moisture sensor “1”?
If the moisture amount is less than the permissible amount (which can be changed by the potentiometer on the sensor) the DO pin will be “1”, otherwise will remain”0″. In this tutorial, we have used the Waveshare Soil Moisture Sensor.
How to measure soil humidity with Arduino IDE?
Step 2: Open the Serial Monitor of Arduino IDE by clicking Tools -> Serial Monitor and set the baud rate to 9600. When everything goes well, you’ll see output like the example shown below. For more information on the Arduino Serial Monitor, kindly refer to this guide. This sensor qualitatively measures the humidity of the soil.
How does a moisture level sensor work?
The less water in the soil means poor conductivity and will result in a higher resistance. The sensor produces an output voltage according to the resistance, which by measuring we can determine the moisture level.
