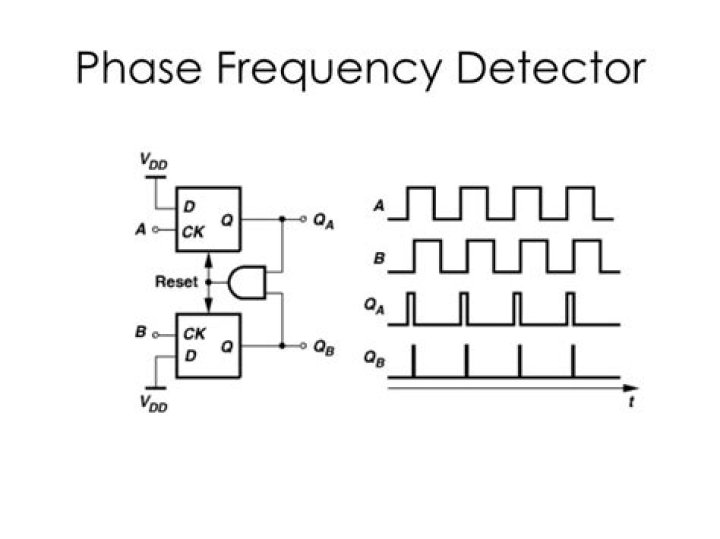

How does a phase frequency detector work?
A phase detector is a mixer-like circuit that puts out a signal that is proportional to the phase difference between two input signals of the same frequency. A phase shift is a time difference between two signals of the same frequency.
What are the types of phase detector?
There are two classes of phase detectors: a linear phase detector, in which the transfer function is somewhat linear between the output and the input phase error, as shown in Figure 4.41(A), and a binary phase detector (or bang-bang phase detector), in which only the sign of the phase error is extracted, as shown in …
What is an RF phase detector?
RF phase detectors and comparators are circuits or instruments that provide a DC output voltage proportional to the difference in phase between two RF signals. They include local oscillator (LO), radio frequency (RF), and intermediate frequency (IF) components.
What is phase detector gain?
Phase detector: compares the phase at each input and generates an error signal, ve(t), proportional to the phase difference between the two inputs. KD is the gain of the phase detector (V/rad). Any phase difference then shows up as the control voltage to the VCO, a DC or slowly varying AC signal after filtering.
What is the output voltage of phase detector?
Explanation: The output voltage of a phase detector is a dc voltage and is often referred to as error voltage. This output is applied to the low pass filter which removes the high frequency noise and produces a dc level.
What is PLL detector?
A phase-locked loop or phase lock loop (PLL) is a control system that generates an output signal whose phase is related to the phase of an input signal. There are several different types; the simplest is an electronic circuit consisting of a variable frequency oscillator and a phase detector in a feedback loop.
Is PLL analog or digital?
The digital PLL can handle clock switching and difficult frequency ratios, while the analogue one can be used to further attenuate spurs, multiply to higher frequencies, and perform clock distribution.
What is VCO Mcq?
This set of Linear Integrated Circuit Multiple Choice Questions & Answers (MCQs) focuses on “Voltage Controlled Oscillator”. Explanation: A Voltage Controlled Oscillator (VCO) is used for converting low frequency signals such as EEGs, EKG into an audio frequency range.
How is PLL frequency calculated?
Therefore, FOUT = (FREF/R) × (BP + A), as in Figure 4. There are many specifications to consider when designing a PLL. The input RF frequency range and the channel spacing determine the value of the R and N counter and the prescaler parameters. The loop bandwidth determines the frequency and phase lock time.
Can be used as a phase detector in PLL?
The more complex digital phase-frequency detectors usually have an output that allows a reliable indication of an out of lock condition. An XOR gate is often used for digital PLLs as an effective yet simple phase detector.
