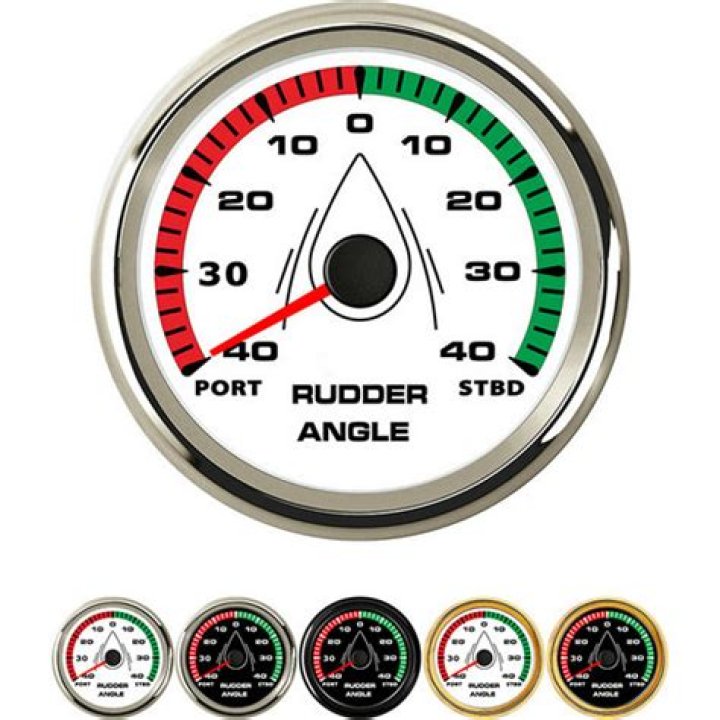

How does a rudder angle indicator work?

The electric rudder angle indication utilizes the synchronism of synchronized motors. The rotation angle corresponding to the angle of rudder is given to the sending synchronized motors. And that angle is electrically transmitted to the receiving synchronized motor which reflects the pointer on the dial.

What is rudder angle indicator and its function?

marine. A device used to indicate the present position of the rudder blade, usually fitted in the wheelhouse, bridge wings and engine control room.

What is an angle indicator?

The PASCO ME-9495A Angle Indicator is an accessory used for measuring angles from 0° to 90° in two direc- tions. There are four different methods of using the Angle Indicator: • hand-held, by suspending the device over a string. String.

How rudder angle is controlled?

The output of the command and control block, which is generated by a digital-to-analog converter, is connected to the input of the rudder servo block. Thus, the rudder angle is now controlled by the rudder control stick.

How do you adjust the rudder indicator?

Place Rudder on zero degree (Mid-ship). Repeatedly adjust the “Center” adjustment on the rear panel of the KRI-80 to ensure all needles are in center position. 3) Place Rudder to full scale. Adjust the “Range” to read correct Rudder angle indication.

What is a boom angle indicator?

Boom angle indicators are normally mounted on the back side of a boom where they can easily be read by the operator. They are used as a quick reference for the operator to know what angle the boom is at. Boom angle indicators are designed to improve the boom operator’s ability to detect tip over situations.

What is rate of turn ship?

Rate of turn indicator or ROTI on board vessels indicates the rate a ship is turning. It indicates the rate a ship is turning in degrees per minute (°/min) . It is one of the most important instruments a helmsman can have when steering a course.

What is a rudder angle indicator as fitted in steering gear system?

A rudder angle indicator is a device used to indicate the present position of the rudder blade, usually fitted near the Ship’s wheel on the bridge and in the engine control room.

What is boom angle?

The boom angle is the angle between the longitudinal centerline of the boom and the horizontal. The boom longitudinal centerline is a straight line between the boom foot pin (heel pin) centerline and boom point sheave pin centerline.

How does a rudder work?

In both cases the rudder works by deflecting water flow: when the helmsman—the person steering, as likely female as male—turns the rudder, the water strikes it with increased force on one side, decreased force on the other. The rudder moves in the direction of lower pressure.

Why is rudder angle limited?

Why Rudder Angle Limited to 35 Degrees? Beyond 35 degree rudder efficiency is reduced due to formation of eddies on the back of rudder as the flow is no longer streamlined. The manoeuvrability does not increase beyond 35 degree, but rudder torque increases and ship’s turning circle increases.

What is the function of a boom angle indicator?

Boom angle indicators are normally mounted on the back side of a boom where they can easily be read by the operator. They are used as a quick reference for the operator to know what angle the boom is at.

What is a rudder angle indicator system?

Rudder Angle Indicator System. Raytheon Anschütz rudder angle indicator systems are characterized by a diversity of different indicators to fulfil individual customer needs. Instruments in different sizes, scales, type of installations and protection grades.

How does a rudder angle amplifier work?

The rudder angle signal of the feedback potentiometer and passed on to the connected rud- der angle indicators. Readiness for operation of the amplifier is signalized by a LED. Rudder angle equipment with amplifier

Is the rudder independent of the steering control system?

In the angle indicator system Rudder is independent of the steering system and is only for the display. There is an IMO requirement which states regardless of the steering control system there must be installed steering indicator system installed on board.

What is the function of a rudder actuator?

The power supply provides the energy to move the rudder at the desired angle and the transfer unit to move the motions of the rudder. The central steering of the movement of the rudder affect the ship’s engines control. And rudder actuators single unit servo steering is the torque means is applied to the i-th rudder shaft. Lance or Quadrant
