How does contact angle affect wettability?

Contact angle is a measure of wettability Water contact angle will immediately give an indication of the wettability of the solid. If the measured contact angle is above 90 degrees, the solid is said to have poor wetting and is termed hydrophobic. If the contact angle is below 90 degrees, a term hydrophilic is used.

What does contact angle indicate?

The contact angle is a measure of the ability of a liquid to wet the surface of a solid. The shape that a drop takes on a surface depends on the surface tension of the fluid and the nature of the surface. At the boundary between droplets and the gaseous environment, the surface tension causes a curved contour.

What is the contact angle for super hydrophobic surface?

150°
(7) As a rule, a superhydrophobic surface shows a water contact angle (CA) higher than 150° and a sliding angle (SA) less than 5°. The contact angle described by Young’s equation is determined from a static state, whereas contact angle hysteresis (CAH) is measured from dynamic experiments of droplets or liquid bridges.

Which contact angle has highest wettability?

Background. In the case of complete wetting (spreading), the contact angle is 0°. Between 0° and 90°, the solid is wettable and above 90° it is not wettable.

What is the wettability of contact lenses?

Wettability refers to how easily a liquid spreads over the surface of a contact lens. Clinically, this can be observed by viewing the interaction between the tears and the lens surface. In a laboratory setting, in vitro wettability can be quantified by measuring the “contact angle.”

What is the relation between contact angle and wettability of a liquid?

On a homogeneous solid surface, angle θ is independent of the volume of the liquid drop. Obviously, since the tendency for the liquid to spread increases as θ decreases, the contact angle is a useful inverse measure of spreadability or wettability.

What is the minimum contact angle that super hydrophobic coatings aim to achieve?

Super-hydrophobic surfaces are surfaces that have extreme water-repellent properties and show contact angle greater than 150° and sliding angle less than 5°. These surfaces play a significant role in different processes like icing delay, anti-frosting, boiling, condensation, drag reduction, self-cleaning, etc.

What is superhydrophobic knife?

Ultrahydrophobic (or superhydrophobic) surfaces are highly hydrophobic, i.e., extremely difficult to wet. The contact angles of a water droplet on an ultrahydrophobic material exceed 150°.

What is liquid angle?

The contact angle is the angle, conventionally measured through the liquid, where a liquid–vapor interface meets a solid surface. It quantifies the wettability of a solid surface by a liquid via the Young equation. It changes with surface tension and hence with the temperature and purity of the liquid.

What is the contact angle of water on a hydrophobic surface?

On a hydrophobic surface, water forms distinct droplets. As the hydrophobicity increases, the contact angle of the droplets with the surface increases. Surfaces with contact angles > 90° are designated as hydrophobic. The theoretical maximum contact angle for water on a smooth surface is 120°.

What is the relation between contact angle and wettability?

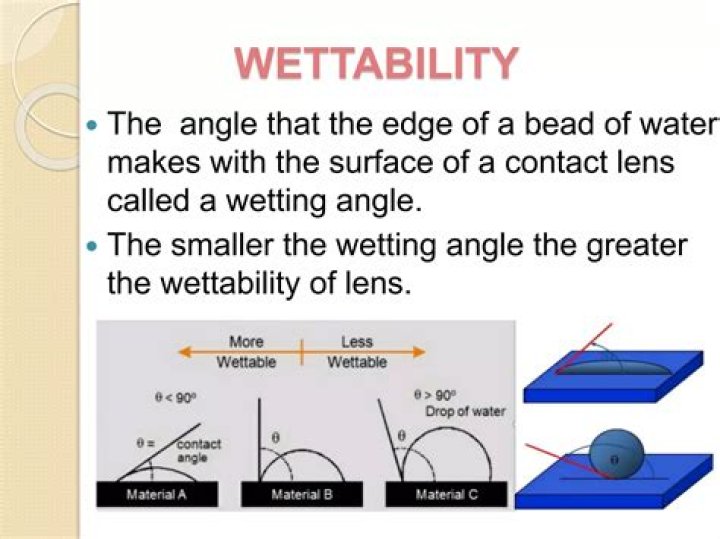

The figure (from the lecture) illustrated different contact angles corresponding to different wettability of the surface, which depends on the relative hydrophobicity/ hydrophilicity of the surface compared to the liquid. Conventionally, the contact angle is measured as the angle between the solid surface and the liquid drop surface.

How do you know if a surface is hydrophilic or hydrophobic?

Generally, if the water contact angle is smaller than 90°, the solid surface is considered hydrophilic and if the water contact angle is larger than 90°, the solid surface is considered hydrophobic. Many polymers exhibit hydrophobic surfaces.

What is the contact angle in chemistry?

Conventionally, the contact angle is measured as the angle between the solid surface and the liquid drop surface. In other words, the contact angle is the angle between the solid-liquid interfacial (surface) force (denoted as gamma_SL) and the surface tension or the liquid-vapor interfacial force (denoted as gamma_LG).
