How does LIN communication work?

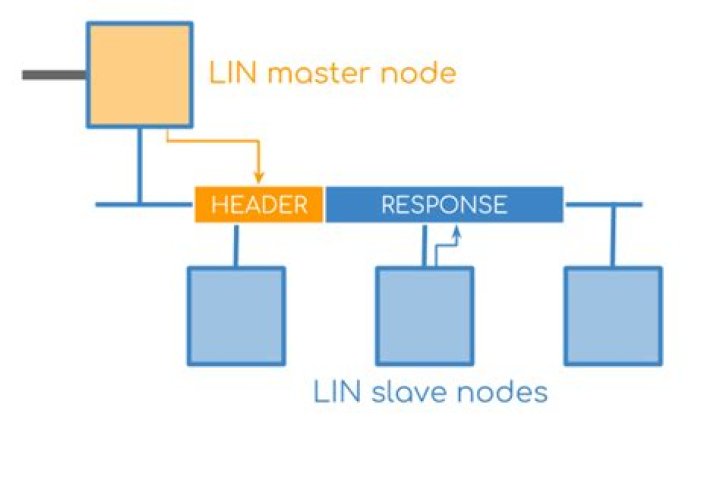

How does LIN bus work? LIN communication at its core is relatively simple: A master node loops through each of the slave nodes, sending a request for information – and each slave responds with data when polled. The data bytes contain LIN bus signals (in raw form).
What voltage is LIN?
The LIN bus, and LIN transceivers, typically operate at voltages ranging from 9 V to 18 V, but some go up to 30 V, depending on the application; a typical vehicle is a 12-V battery system, but some larger vehicles go up to 24 V.
How do you test for LIN?
An easy way to check the LIN wiring is to unplug the slave module and check the ‘at rest’ voltage of the LIN wire. The master should send out the 7 to 12 volt reference. If the wiring to the multi-function switch checks out good, replace the switch. If the input shows to be correct, check the bussed outputs.
What is LIN in embedded system?
LIN (Local Interconnect Network) was developed as cost-effective alternate to CAN protocol.
What is PID in LIN?
Protected Identifier (PID) The Token is referred to as the Message Header in a LIN network. The entire Message Header is transmitted by the LIN Master. It is made up of the Sync Break, Sync Field and PID (Protected Identifier). Both the Sync Field and Sync Byte are used for initial synchronization.
How do I create a LIN description?
- Step 1: Rename Project.
- Step 2: With MHC, configure FreeRTOS.
- Step 3: With MHC, verify I2C Driver, SDSPI Driver, File System Service configurations.
- Step 4: With MHC, configure Harmony Core.
- Step 5: With MHC, generate code.
CAN LIN bus system?
The CAN bus allows for components to talk to each other seamlessly in the automobile. The LIN bus allows for further expansion to peripheral devices. This bus hierarchy was designed to save costs and wiring. Wire is one of the most expensive components in a car.
Can Bus vs LIN bus?
The CAN bus allows for components to talk to each other seamlessly in the automobile. The LIN bus allows for further expansion to peripheral devices. This bus hierarchy was designed to save costs and wiring.
What are the electrical connections needed for the LIN bus?
A standard LIN bus consists of a master node and up to 15 slave nodes connected to a single network. The physical LIN network is a three-wire configuration consisting of power (vehicle battery), ground and the LIN bus communication line. A pull-up resistor, RLIN, typically 1kΩ, is required on the master’s LIN bus line.
Where is LIN protocol used?
Modern automotive networks use a combination of LIN for low-cost applications primarily in body electronics, CAN for mainstream powertrain and body communications, and the emerging FlexRay bus for high-speed synchronized data communications in advanced systems such as active suspension.
What is LIN schedule table?
The Schedule Table in the LIN Description File (LDF) defines the sequence and time grid in which messages are sent. Once the table has been worked through, the Master begins with the first message again.
What is a one line circuit diagram?
One-line diagram – a diagram that uses single lines and graphic symbols to indicate the path and components of an electrical circuit. One-line diagrams are used when information about a circuit is required but detail of the actual wire connections and operation of the circuit are not.
How do you make a simple electrical circuit diagram?
Start with a collection of electrical symbols appropriate for your diagram. Draw circuits represented by lines. Drag and drop symbols to the circuits and connect them. Use line hops if any lines need to cross. Add layers to show complexity.
What does the LIN bus waveform look like?
As you can see from the example waveform, the LIN bus waveform is a square wave, representing the binary states in a serial data stream. The waveform observed should be free of obvious distortion and noise spikes, and the upper and lower levels should be approximately as in the example (for a 12 V system).
How do I use the LIN-bus to check my signal?
Operate the systems connected by the LIN-BUS to observe signal changes. Move connectors and wiring loom fixings to look for any signal drop-out. With your waveform on screen stop the scope. Use the Waveform Buffer, Zoom and Measurements tools to examine your waveform.
