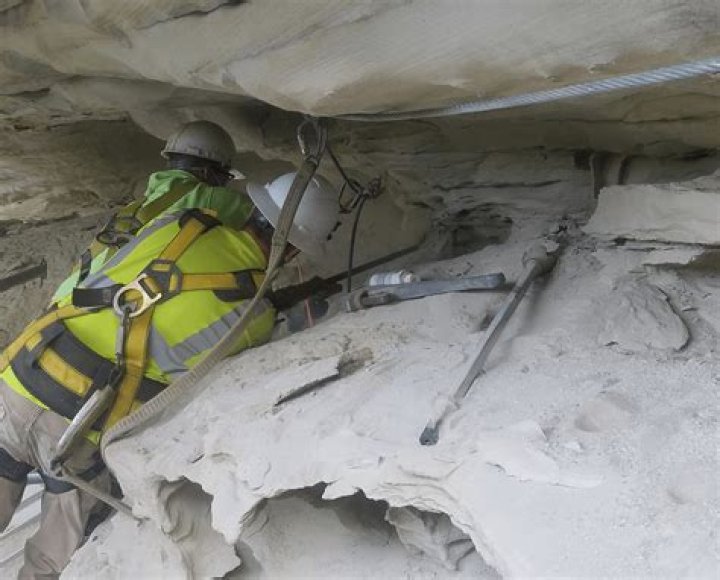

How is rock bolting done?
Rock bolts work by ‘knitting’ the rock mass together sufficiently before it can move enough to loosen and fail by unraveling (piece by piece). Unlike common anchor bolts, rock bolts can become ‘seized’ throughout their length by small shears in the rock mass, so they are not fully dependent on their pull-out strength.
What is bolting mining?
Face bolting is just what it sounds like – in addition to scaling and installing rock bolts and screen in the back and the walls of a drift, the working face is scaled, screened and bolted to provide better protection to the workers exposed to it.
What is meant by rock bolting?
[′räk ‚bōlt·iŋ] (engineering) A method of securing or strengthening closely jointed or highly fissured rocks in mine workings, tunnels, or rock abutments by inserting and firmly anchoring rock bolts oriented perpendicular to the rock face or mine opening.
Why is rock bolting done?
Rock bolts have been used for many years as temporary roof support in the mining industry and for tunneling, and are now used routinely for stabilizing roadcuts, rock cliffs, steep slopes, bridge abutments, and reinforced concrete dams.
What are the types of rock bolts?
The mechanical models were then presented for four types of rockbolts: mechanical rockbolt, fully encapsulated rockbolt, frictional rockbolt, and energy-absorbing rockbolts.
What is rock reinforcement?
Rock reinforcements are additional supports provided to the rock structures to improve its stability and load carrying capacity. Rock reinforcement utilizes the inherent property of the rock structures to behave like a self-supporting single unit.
What are rock bolts made of?
steel
Rock bolts are made from steel or Fibre Reinforced Polymers (FRP). The most common FRP is fibreglass (GFRP), but other systems are available.
What is the difference between rock bolt and rock anchor?
An anchor is a system used to transfer tensile loads to the ground. Soil nails and rock bolts are bar anchors that are normally passive, although they can be active, or be prestressed with a small load.
How can improve the properties of rock reinforcement and rock bolting?
Reinforcement for rocks can be provided in the form of rock bolts, cable anchors, shotcrete, and compaction grouting to improve the rock quality and stability.
- Rock Bolts and Cable Anchors. The strength of rock mass can be increased with the help of rock bolts and cable anchors.
- Compaction Grouting. Ad.
- Shotcrete.
What is rock anchoring for foundation?
A Rock anchor is a high strength steel tendon which is placed along with a stressing anchorage on one end, whereas a means for transferring force to the grout & rock on the other end. A hole is drilled of a proper length and diameter, after which the rock anchor tendon is inserted & fixed to the rock.
What is roof bolting in mines?
A system of roof support in mines. Boreholes usually from 3 to 12 ft (1 to 4 m) long are drilled upward in the roof, and bolts of 5/8 to 1 in (2 to 2.5 cm) or more in diameter are inserted into the holes and anchored at the top by a split cone, mechanical anchor, or resin grout.
How can a rock be improved?
The strength of rock mass can be increased with the help of rock bolts and cable anchors. They are generally used to improve the slope stability, provide resistance against uplift in concrete dam foundation, and reduce the squeezing of rocks around the tunnel periphery.
How are rockbolts used in underground mines?
Support in Hard rock Underground Mines 3 Tensioned rockbolts are most effective in retaining loose blocks or wedges of rock near the surface of the excavation. These blocks may have been loosened by intersecting joints and bedding planes in the rock or they may have been created by poor quality blasting.
What is underground mine support made of?
Ground support consists of rock bolts, mesh and, or shotcrete. Using a combination of the 3, underground mines manage the different ground conditions encountered in the mine. There are 3 types of bolts that are used in an underground mine, these are Split Sets, Chemical Bolts and Cable Bolts.
How to reduce the need for rock bolts and mesh?
The need for mechanically anchored rockbolts is reduced significantly by careful blasting and by correct scaling. These techniques reduce the amount of loose rock which has to be supported and hence the need for bolts and mesh.
What type of rock reinforcement is used in underground mines?
Underground mines use two principal types of rock reinforcement – tensioned mechanically anchored rockbolts and untensioned grouted or friction anchored dowels. It is important that the different ways in which these reinforcing systems work is fully understood and a brief discussion on this subject is given on the pages which follow.
