How long is each section of a radio tower?
All sections are eight foot in length. Sections are designed and fabricated in compliance with the 1997 Uniform Building Code and the ANSI/AWS D1. 2-97 Standard.
How tall are the sections of a radio tower?
Standard Duty HN
| Tower Model | T-40HN | T-50HN |
|---|---|---|
| Tower Sections | B, C | B, C |
| Length Of Each Section | 20 ft | 25 ft |
| Maximum Height W/ Mast | 40 ft | 50 ft |
| Nested Height W/O Mast | 20 ft 6 in | 20 ft 6 in |
How tall can an antenna tower be?
It’s generally 200 ft – HOWEVER – there are a number of caveats.
At what height does a tower need a light?
200 feet
FAA Lighting Requirements. According to Federal Aviation Administration (FAA), all structures exceeding 200 feet above ground level (AGL) must be appropriately marked with tower lights or tower paint.

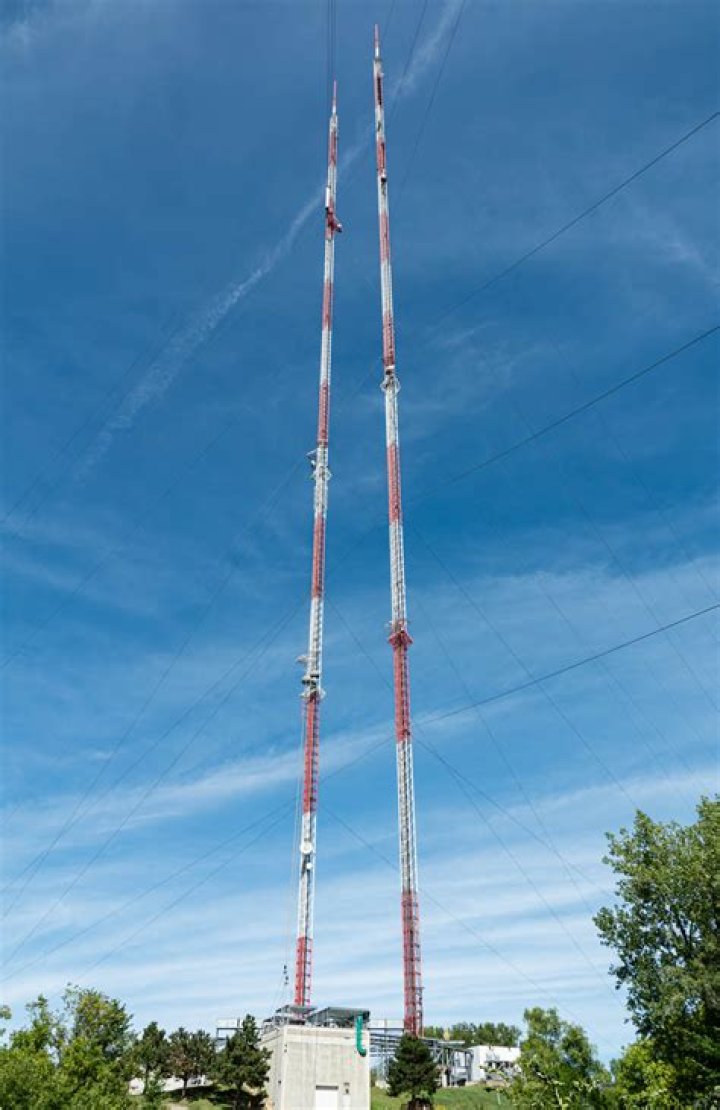

How tall is a red and white radio tower?
Television- and radio-transmitting towers are among the tallest and most fragile structures built, with some up to 2,000 ft. (609.60 m) in height.
How tall can a tower be without lights?
Broadcasters and tower companies have long relied on FAA rules that generally don’t require the lighting of towers under 200 feet in height except when these shorter towers may interfere with the flight path of an airport.
How high can you mount an antenna on the roof?
However, to avoid overstressing the chimney, do not mount the antenna more than 10 feet above the top of the chimney. If the height of the antenna must exceed 10 feet to receive satisfactory signals, the mast must be properly guyed.
How much does a TV antenna tower weigh?
The antenna weighs 9,000 pounds (4.1 t), the lattice tower weighs 855,500 pounds (388.0 t), giving a total weight of 864,500 pounds (392.1 t).
How Tall Can I build a tower be without lights?
Broadcasters and tower companies have long relied on FAA rules that generally don’t require the lighting of towers under 200 feet in height except when these shorter towers may interfere with the flight path of an airport.
What is a cell tower antenna?
Cell site placed atop an existing building. A cell site or cell tower is a cellular-enabled mobile device site where antennae and electronic communications equipment are placed — typically on a radio mast, tower, or other raised structure — to create a cell (or adjacent cells) in a cellular network.
What is antenna tower?
Radio masts and towers are, typically, tall structures designed to support antennas (also known as aerials) for telecommunications and broadcasting, including television. There are two main types: guyed and self-supporting structures.
What are radio station towers?
Radio Towers. Famous Radio Masts and TowersRadio masts and towers are the supports used to hang or secure antennas of ground wireless stations at the required height. They are used for telecommunications and broadcasting, including television. The difference between a mast and a tower lies in their structure.
