How many degrees of freedom does a cantilever beam have?
two
Each end of the beam has one rotational and two translational degrees of freedom. In the unrestricted state, these are the beam’s complete degrees of freedom.
What is the moment of deflection of a cantilever beam?
Cantilever Beams
| Cantilever, End Load | Deflection: @ x = L Slope: @ x = L Shear: V = +F Moment: M = −F (L − x) Mmax = −FL @ x = 0 |
|---|---|
| Cantilever, Uniform Distributed Load | Deflection: @ x = L Slope: @ x = L Shear: V = +w (L − x) Vmax = +wL @ x = 0 Moment: M = −w (L − x)2 / 2 Mmax = −wL2 / 2 @ x = 0 |
What will be the degree of freedom in a propped cantilever beam?

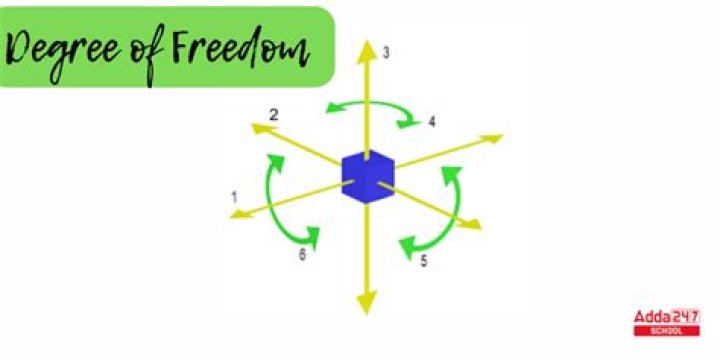

This means that it can rotate about three different axis as well as translate along three different axis. So this means it has six degrees of freedom.
What is the maximum deflection of a cantilever?
The maximum deflection in cantilever beam of span “l”m and loading at free end is “W” kN. Explanation: Maximum deflection occurs at free end distance between centre of gravity of bending moment diagram and free end is x = 2l/3. Maximum deflection (y) = Ax/EI = Wl3/3EI.
What is the degree of freedom of the beam?
For example, two-dimensional (2-D) elements only have translational DOFs….Table 1: DOFs for common structural element types.
| Element | Degrees of Freedom |
|---|---|
| Truss | translation in X, Y, Z |
| Beam | translation in X, Y, Z; rotation in X, Y, Z |
| 2-D | translation in Y, Z |
| Brick | translation in X, Y, Z |
How do you find the deflection of a cantilever beam?
Generally, deflection can be calculated by taking the double integral of the Bending Moment Equation, M(x) divided by EI (Young’s Modulus x Moment of Inertia).
What is the deflection of a beam?
Deflection, in structural engineering terms, means the movement of a beam or node from its original position. It happens due to the forces and loads being applied to the body. Deflection also referred to as displacement, which can occur from externally applied loads or from the weight of the body structure itself.
What is the degree of freedom of this beam?
Two-dimensional beams have three degrees of freedom at each node: two translational degrees of freedom (1 and 2) and one rotational degree of freedom (6) about the normal to the plane of the model.
Where is the maximum deflection of cantilever beam?
In a cantilever beam, the maximum deflection is experienced only in the free end and is calculated using the above formula.
How do you calculate deflection in a cantilever beam?
A cantilever beam has an infinite number of degrees of freedom system, since the beam has an infinite number of mass points we need an infinite number of coordinates to specify its deflection configuration.
How do you find the maximum deflection of a cantilever?
Maximum Deflection. at the end of the cantilever beam can be expressed as. δ C = (F a 3 / (3 E I)) (1 + 3 b / 2 a) (2c) where. δ C = maximum deflection in C (m, mm, in) E = modulus of elasticity (N/m 2 (Pa), N/mm 2, lb/in 2 (psi)) I = moment of Inertia (m 4, mm 4, in 4)
How do you calculate maximum deflection at the end of beam?
Maximum Deflection at the end of the cantilever beam can be expressed as δC = (F a3 / (3 E I)) (1 + 3 b / 2 a) (2c)
How do you find the natural frequency of a cantilever beam?
