How many lights can you put on one switch?
There is no limit to the number of lights on a circuit. The load of the fixtures is what determines how many lights a circuit can accommodate. A conventional 15A circuit can have up to 1400W of lighting loads connected to it. A 1400 Watts lighting load can accommodate one 1400W fixture or fourteen 100W fixtures.
Can a single pole switch control two lights?
A single light switch that controls two fixtures, such as two lights or a light and a bathroom or ceiling fan, can be converted to a double light switch that allows you to operate each fixture independently. You’ll need a screwdriver, a pair of wire strippers, a double switch plate and a voltage tester.
How many LED lights can you put on a circuit?
Breaker Limitations Each CFL or LED bulb typically gives the same amount of light as a 60-watt incandescent bulb while drawing 10 watts or less, which is equivalent to a current draw of 1/12 amp. Thus a 15-amp circuit can safely control 180 or more fixtures that use CFL or LED bulbs.
How many LED bulbs can you put on a dimmer?
Varilight recommend putting no more than 10 LED lamps on one dimmer module. You can put multiple lamps on one plate, so if you have a three gang dimmer plate you can put thirty LED lamps on the plate in total (10 on each module).
Can you daisy chain light switches?
Daisy chaining is a simple way to connect two or more light fixtures. Multiple light fixtures operated by a single switch can be most easily wired through a process known as “daisy chaining.” This is a simple, serial wiring scheme that connects the wires of the light fixtures one to the next in a single circuit.
Is daisy chaining series or parallel?
A common misconception when doing receptacle wiring is that, when you daisy-chain them in a circuit, you’re wiring them in series. You’re actually wiring them in parallel, and that’s a whole different thing. Virtually all devices in residential circuits – except for switches – are wired in parallel.
How do you wire multiple lights to a single switch?
There are two main ways to wire multiple lights to a single switch, and electrical engineers refer to these as “daisy-chaining” and “home run” switch wiring ( source ). Instead of wiring lights in a series, like the Christmas tree light example, daisy-chain wiring involves parallel wiring.
How many LED lights can you put on a light switch?
Most circuits in a home allow for 15 to 20 amps, so you can safely connect 1400 to 2400 watts of lighting on one light switch. That’s enough for 23 to 40 60-watt bulbs or 280 to 480 5-watt LEDs.

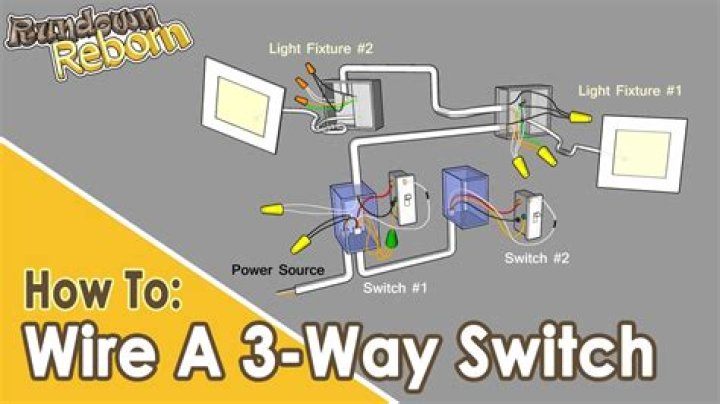

How to control light fixtures with two or more switches?
To control light fixtures with two or more switches, you could also connect additional lights in parallel with the fixtures that are already a part of the connection.
How many lights can be switched from one light source?
If three, four or even more lights are required to be switched from a single source, the new cable can be extended to as many lights as required. Here the ceiling rose is shown with two cables, both of which connect to line, neutral and earth with no loop connection. One cable connects to the previous light, the other continues to the next light.
