How many ohms should a coolant temperature sensor have?
You should have a reading of approximately 2000 ohms. Check the warm sensor in your engine. You should see a much lower reading on the ohm meter. If not, then it is not working correctly.
What is the value range of a temperature sensor?
Type R and S thermocouples are rated for use at temperatures between 1000°F and 2700°F, with Type B rated for use from 1000°F to 3100°F.
How do you test a temperature sensor with a multimeter?
Submerge your temperature sensor in the hot water and wait a few seconds to let your multimeter take a reading….Move the sensor to a cup of boiling water and take another reading.
- A hot water reading should give you around .
- Make sure the cup you use is able to hold boiling water safely.
How do you use a multimeter to check a temperature gauge?
Turn your vehicle on and let it warm up. Disconnect the gauge signal wire from the sender and check the ohms output between the sender and common ground/chassis with a multimeter. Compare the ohms output with the expected ohm output at warm temperature.
Which sensor is linear and low accuracy?
semiconductor based temperature sensor
Explanation: A semiconductor based temperature sensor is placed on Integrated Circuits. They are linear but have the lowest accuracy.
How do you check a temperature sensor?
Identifying thermistors and RTDs To determine whether the sensor is a thermistor or RTD, as well as the type, you must measure the resistance between the two different-coloured wires: An RTD PT100 will have a resistance of 100 ohms at 0 °C. An RTD PT1000 will have a resistance of 1,000 ohms at 0 °C.
How do you test a coolant temp sensor with a multimeter?
Submerge your temperature sensor in the hot water and wait a few seconds to let your multimeter take a reading. Write down your reading so you can easily reference it. A hot water reading should give you around .

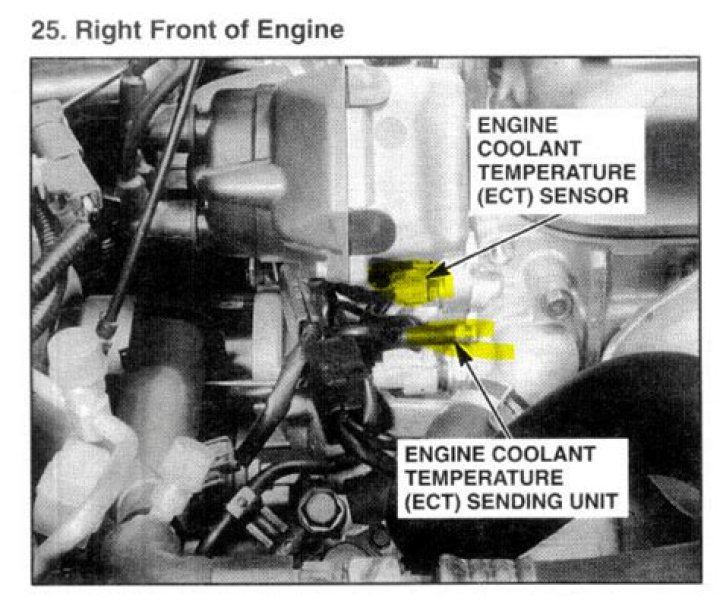

Where is the coolant sensor on a Jeep Wrangler?
On Jeeps there are two coolant sensors. There is one at the front of the engine in the thermostat housing, this one has two wires. Then there is another at the back drivers topside of the engine cylinder head just to the right of the valve cover, this one has one wire.
What is the resistance of the coolant temperature sensor?
The resistance of the sensor is read by the ECU which in turn adjusts the air/fuel ratio as close to 14.7:1 as possible. When a coolant temperature sensor fails (open circuit / no continuity) the high / infinite resisitance will cause the ECU to falsely read the max low temperature of -40 degrees F.
How does the coolant resistance affect the air fuel ratio?
(The hotter the coolant – the lower the resistance.) The resistance of the sensor is read by the ECU which in turn adjusts the air/fuel ratio as close to 14.7:1 as possible.
What are the signs of a bad temperature sensor?
Wear and tear from age. Old coolant that has become corrosive. Leaking around where it screws in or where the electrical connections. Cracks in the plastic where the harness connects on to it. It’s really not a sensor that fails often. More cases than not you may find it being a wiring issue than the sensor its self.
