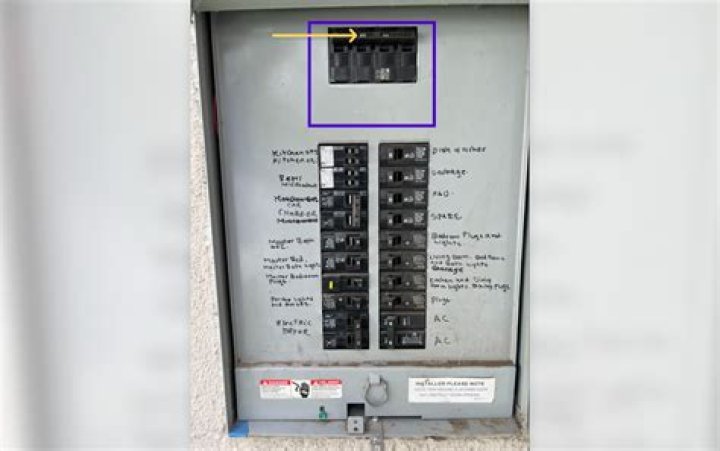

How many spaces does a 100 amp panel have?
Typical 100-amp panels have 20 circuits, meaning they can handle 20 full-sized breakers. 20/24 panels can hold 16 full-sized and 4 twin breakers (24 circuits in total). The number of breakers can max out to 30-42, too, depending on the design of your 100-amp pane.
Will Square D QO fit in homeline panel?
These circuit breakers are used for overload and short-circuit protection of your electrical system. Square D Homeline breakers are compatible with Homeline breaker boxes and CSEDs. Square D QO breakers are compatible with QO breaker boxes and CSEDs. Each ANSI-certified and UL-listed.
Can I run a 60 amp sub panel from 100 amp main?
Electricians are well versed in how to make these calculations. If you have older 60-amp or 100-amp main service, it is entirely possible that you will need a service upgrade to 150-amps or 200-amps before you are able to adequately power a new subpanel.
Can you feed a 100 amp sub panel with a 50 amp breaker?
Do not exceed 100A. However, you certainly should exceed your feed-breaker size of 50A. Even if 50A panels existed, they would be very small in terms of numbers of spaces. The most important job of a subpanel is to not run out of spaces.
Is the Square D QO 100 amp main breaker UL listed?
The Square D QO 100 Amp Main Breaker 24-Space 24-Circuit Convertible Indoor Plug-on Neutral Load Center for Plug-on Neutral breakers is UL listed for residential, commercial and industrial power distribution. This load center is built with a shielded, copper bus bar that is plated for reliability.
What kind of Breaker is a square D?
The Square D by Schneider Electric Homeline Value Pack 100 Amp 20-Space 40-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes the cover, a selection of breakers and is UL listed for residential and commercial power distribution.
What is Square D by Schneider Electric Homeline?
The Square D by Schneider Electric Homeline Value Pack 100 Amp 24-Space 48-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes the cover, a selection of breakers and is UL listed for residential and commercial power distribution.
What is the warranty on Square D single phase load centers?
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
