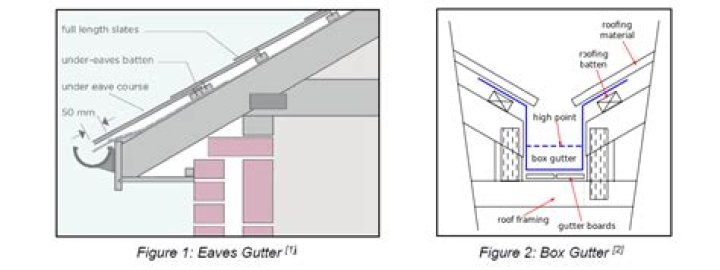

How much fall does a gutter need?
To ensure that gutters drain properly, make certain they slope (½ inch for every 10 feet) toward a downspout. For gutter runs longer than 40 feet, it’s best to pitch the gutter down from the middle to a downspout at each end.
How do you measure the slope of a gutter?
As a general rule, gutter slope is set at 1/2 inch per 10 feet of guttering. For example, if you have 30 feet of guttering, the calculation is 1/2 x 3 = 1.5 inches. This means the downspout end of the gutter should be set 1 1/2 inches lower than the other end.
How do you calculate gutter and downspout capacity?
How to Calculate Gutter and Downspout Capacity
- Measure the roof to get the watershed area, the area from which water will run off.
- Find the rainfall intensity for your locale.
- Divide the inch per hour watershed of the roof by the 5-minute rainfall intensity.
- Size downspouts to fit the gutter.
How long can a gutter be with one downspout?
To limit the effects of thermal expansion in gutters 50 ft(15.3 m) is a practical maximum length of gutter to be served by a downspout.
What is the minimum slope for gutters?
A good rule of thumb for a gutter slope is that you want at least a quarter inch of slope for every 10 feet of gutters.
How much fall should a gutter have metric?
It is generally accepted that gutters should have a fall of 1 in 200 (1-metre run = 200mm fall).
How much slope should a downspout drain?
We want our drain pipe to have a 1% slope so water will always drain properly. That means the trench and drainpipe must slope away from the house with at least 1-inch (2.5 cm) of fall for every 8-feet (2.4 m) of run.
Do gutters have to be sloped?
Gutter Slope Rules This brings up another important rule to keep in mind: all guttering must slope toward the nearest downspout. So if your roofline is 50 feet long and you have a downspout at either end, then you should build in a 5/8 inch slope from the middle of the roofline to both ends.
What is the minimum slope for a 3 PVC?
704.1 Slope of Horizontal Drainage Piping
| SIZE (inches) | MINIMUM SLOPE (inch per foot) |
|---|---|
| 21/2 or less | 1/4a |
| 3 to 6 | 1/8a |
| 8 or larger | 1/16a |
What is the correct fall for underground drainage?
A 110mm foul drain taking the discharge of less than 1 l/s should be laid at a 1:40 (25mm per metre) fall. A foul drain taking the discharge from a minimum of one WC can be laid at 1:80 (12.5mm per metre).
What is the SMACNA downspout and gutters app?
This app allows you to easily and accurately size downspout and gutters using the methods and formulas covered in SMACNA’s Architectural Sheet Metal Manual (ASMM). This app allows you to create table driven solutions using the methods and formulas covered in SMACNA’s HVAC Duct Construction Standard (Metal and Flexible).
What is a good slope for gutter slabs?
Gutter slope should be a maximum of 1/4 inch fall per 10 foot of gutter. Anything more than a 1/4 inch is going to make your home look crooked and poorly built. When including a gradual fall the slope will end up being about 1/8 inch over 10 foot.
What is the maximum gutter length for downspouts?
To limit the effects of thermal expansion in gutters, 50 ft. (15 m) is a practical maximum gutter length to be served by a downspout. The capacity of a sloped rectangular gutter may be approximated by using a gutter cross section area not less than that of a semicircular gutter and a depth to width ratio of at least 0.75.
How do you calculate the capacity of a sloped rectangular gutter?
The capacity of a sloped rectangular gutter may be approximated by using a gutter cross section area not less than that of a semicircular gutter and a depth to width ratio of at least 0.75.
