How much slack should be in garage door chain?

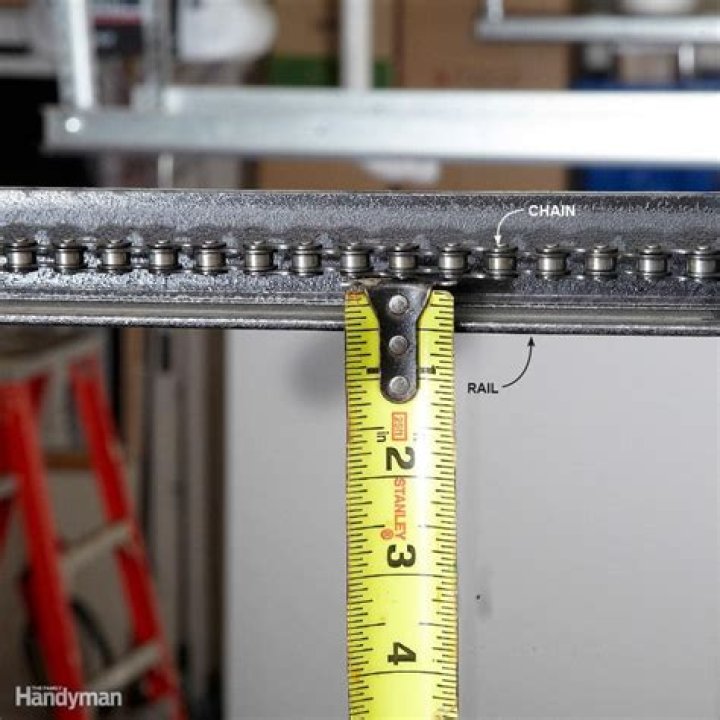

The chain should be tightened until it sits, at its midpoint, about a quarter-inch above the rail for a square rail and a half-inch above the rail for a T-rail. It’s important that you don’t over-tighten it, as this will cause the chain rollers to wear out prematurely.
How much weight can a garage door pulley hold?
A proper working garage pulley should roll smoothly with no jerking or shifting in the track. Each quality made garage pulley has a weight capacity of 200lb lbs and a rating of 25,000 cycles of an 8′ door.
How do you adjust the tension on a commercial roll up door?
With the door in the open position, simply insert a standard 5/16 Allen wrench into the exposed drive, and adjust clockwise to reduce tension or counterclockwise to increase tension.
How much does it cost to replace a garage door chain?
Cost to Fix a Garage Door by Type of Replacement
| Type of Replacement | Average Replacement Costs |
|---|---|
| Chain | $85 – $250 |
| Bearings | $85 – $250 |
| Motor | $100 – $250 |
| Coil | $100 – $300 |
Do you adjust garage door chain with door open or closed?
To achieve proper chain tension, you must release the door from the opener before making any adjustments. When the chain is properly adjusted the chain will be 1/2″ (for T-Rail) or 1/4 ” (for Square Rail) above the base of the rail at its midpoint. ALWAYS keep gate or garage door in sight until completely closed.
Do you grease garage door chain?
Chain drive openers need to be lubricated once or twice per year. We recommend using white grease to lubricate this area. Depending on your chain drive – which is comparable to a bicycle chain – you may have a complete chain, or one with a chain fastened to a steel cable. Apply the grease to the entire length of chain.
What Pulley does a garage door use?
Extension spring doors have four pulleys: two pulleys with pulley forks attached to the springs on either side of the horizontal track, and two stationary pulleys mounted on the horizontal track in front of the radius track.
