Is a Watts Link better than a Panhard bar?

While a Panhard bar reduces unwanted lateral movement, a Watt’s link takes it to the next level by nearly completely eliminating it.

How does a Watts Link suspension work?

A watts link attaches to the rear axle with a pivot point, then its arms bolt to the body of the car. As the body of the car moves up and down, the pivot point will move up and down, traveling in a line. Since the pivot point is traveling in a line, it keeps the axle located directly under the car.

Why is the Watts Link superior to the Panhard bar in regards to axle location?

Why do people claim a Watts Link is better than a Panhard Bar? The bell-crank and link system of a Watts Link keeps a car’s chassis centered over the axle as the suspension moves the chassis up and down, whereas the arc of the Panhard Bar’s movement shifts the chassis sideways during that process.

How do you tell if Watts link is bad?

When you have a Watts link bushing going bad, normally you will hear a clunk and a bunk from the back of the truck when you go over bumps or from forward to reverse. The truck will also not want to track straight on the road and feel very loose. Instructions.

Why do I need an adjustable Panhard bar?

An adjustable Panhard bar is necessary if you change the height of your vehicle. Because the car’s ride height can be changed at any time, it’s important that the Panhard bar is able to do the same to match it. For off-roaders, track bars are needed when lifting your vehicle.

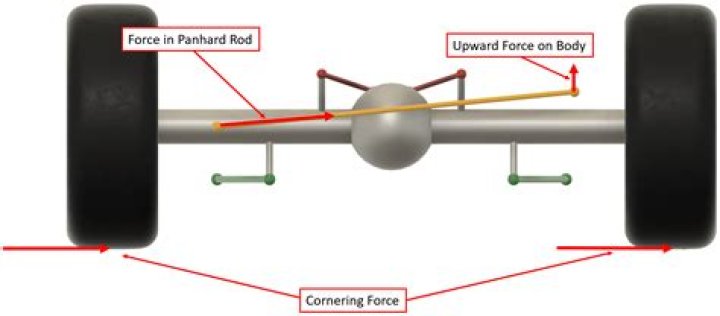

What do Panhard rods do?

The Panhard rod prevents lateral movement. The Panhard bar is a simple device, consisting of a rigid bar running sideways in the same plane as the axle, connecting one end of the axle to the car body or chassis on the opposite side of the vehicle.

How does a Panhard rod work?

Panhard rods provide lateral location of the axle. The purpose of the suspension of an automobile is to facilitate the wheels to move vertically with respect to the body and to prevent them from moving forward or backwards. Designed on the similar model, the panhard rods help prevent lateral movement.

Where is the roll center on a Mustang Watts link?

With a Panhard Bar the roll center is located at the height of the rod. The MM Panhard Bar for Fox/SN95 Mustangs lowers the rear roll center about 9″ from the stock height to just below the rear differential cover. The roll center of a Mustang Watts Link isn’t nearly that low because it’s at the pivot of the bell-crank.

What’s the difference between a Watts Link and a panhard bar?

The bell-crank and link system of a Watts Link keeps a car’s chassis centered over the axle as the suspension moves the chassis up and down, whereas the arc of the Panhard Bar’s movement shifts the chassis sideways during that process. While those are the facts, they’re not the whole story.

How does a Watts link work?

The bell-crank and link system of a Watts Link keeps a car’s chassis centered over the axle as the suspension moves the chassis up and down, whereas the arc of the Panhard Bar’s movement shifts the chassis sideways during that process. While those are the facts, they’re not the whole story. What’s wrong with sideways movement of the chassis?

Are Watts links used in race cars?

Watts Link advocates often point to the many purpose-built tube frame race cars (IMSA and Trans Am, for example) that were equipped with a Watts Link. However, they ignore that since the 1980s those racecars have used Watts Links in what’s called a “lay-down” design.
