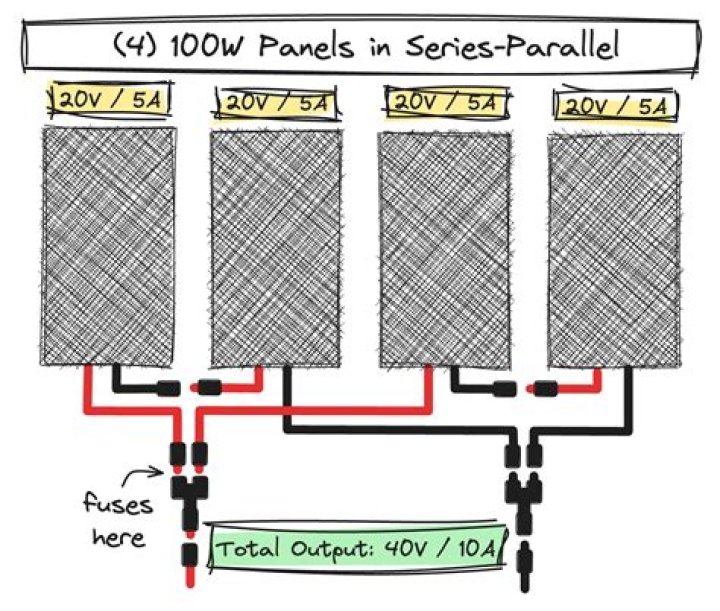

Should I wire solar panels in series or parallel?

The main thing to remember is that wiring in series will increase your voltage, while wiring in parallel will increase your amperage. Both of the voltage and amperage need to be considered when designing your system, especially when it comes to finding an inverter that will work best for you.

What size wire do you use for solar panels?

So long as the expected maximum amp is below 15 amps, a 14 gauge wire should work perfectly fine for solar PV panels. You can always jump up to a 12 gauge wire if you aren’t sure you will exceed 15 amps. 12 AWG wires have an amp capacity of 20 with a 2% voltage drop.

Which wire is best for solar panels?

The two main materials used to make solar farm wiring are copper and aluminum. Copper is more conductive than aluminum, which means a copper wire carries more current than an aluminum wire of the same size.

Can I connect a solar panel directly to a battery?

A solar panel can be connected directly to a 12 volt car battery, but must be monitored if it’s more than 5 watts. Solar panels rated higher than 5 watts must not be connected directly to a battery, but only through a solar charge controller to protect against over-charging.

Should you fuse solar panels?

Commercially made solar panels over 50 watts have 10 gauge wires capable of handling up to 30 amps of current flow. If you connect these panels in series, there will be no increase in current flow so fusing is not required for this string. In the case of panels in parallel, a 30-amp fuse is required for each panel.

How do I choose a wire size?

To determine what gauge wire you need, consider the carrying capacity and the amount of current the wire needs to conduct (measured in amperage or amps). Wire gauge is directly related to how many amps you need to run through it. The distance you need the wire to go can also impact the gauge of wire you need.
