What are different types of belt drives?

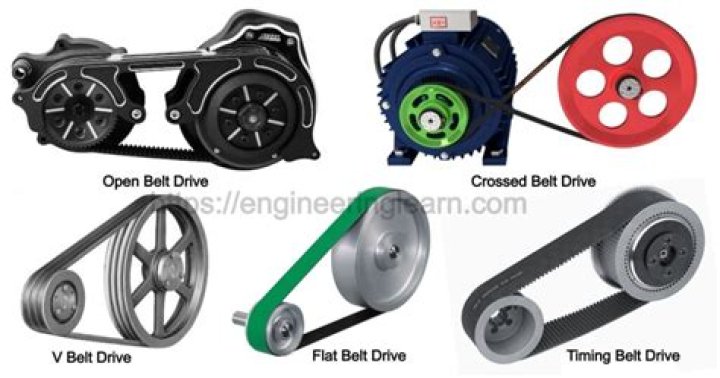

The most common types of belt drives include:

• Round belts. Round belts are are generally made of rubber.
• V belts. V belts are arguably the most widely used belts in industry.
• Flat belts. Flat belts are also used to transmit power from one shaft to another.
• Timing/toothed belts.

What are 3 types of drive belts?

Types of Belts: There are three types of power transmission belts: flat belt, V belt, and synchronous belt.

What are the types of flat belt drives?

Types of flat belt drive

• Open belt drive. In an open belt drive, shafts are arranged in parallel and rotate in the same direction.
• Cross belt drive. Cross belt, also known as the twisted belt, is twisted as shown fig.
• Quarter turn belt.
• Compound belt drive.
• Belt drive with idler pulleys.
• Stepped or cone pulley drive.

What is belt drive system?

belt drive, in machinery, a pair of pulleys attached to usually parallel shafts and connected by an encircling flexible belt (band) that can serve to transmit and modify rotary motion from one shaft to the other. To create an effective frictional grip on the pulleys, belts must be installed with a substantial tension.

What are the 2 types of drive belts?

There are three types of drive belts:

• Serpentine Belt. A serpentine belt is located under the hood of a car, and it “snakes” its way between various pulleys and accessories.
• V-Belt. A V-belt runs off a crank and pulley and typically travels between one or two engine accessories.
• Timing Belt.

What is pulley drive?

A drive pulley is a pulley that is attached to a power source, that when in use puts force on a belt (or cable or chain). The belt is connected to the object being driven, which will then spin. This is a type of power transmission.

What is Cone pulley drive?

noun. (on a lathe) a pulley consisting of a conelike arrangement of graduated, concentric pulleys for driving the headstock at different speeds.

Why belt drives are called flexible drives?

The flexible power transmission elements comprises of belt drives, chain drives and rope drives. Since these elements are flexible they are called flexible drives. When compared with rigid transmission elements, they are quiet and absorbs shocks which reduces mechanical vibrations.

What is a Type V belt?

A v-belt is a flexible machine element used to transmit power between a set of grooved pulleys or sheaves. They are characterized as belts having a trapezium cross-section. V-belts are the most widely used belt drives since their geometry causes them to wedge tightly into the groove as the tension is increased.

What are the 4 types of pulleys?

Types of Pulley

• Fixed pulley.
• Movable pulley.
• Compound Pulley.
• Cone Pulley.
• Block and Tackle pulley.

What are the different types of belt drives?

The following are the types of Belt Drives, Open belt drive. Crossbelt drive. Stepped cone pulley or speed cone drive. Fast and loose pulleys.

What are the factors affecting the selection of belt drive?

SELECTION OF BELT DRIVE: Following are the various important factors upon which the selection of a belt drive depends: 1-Speed of the driving and driven shafts. 2-Speed reduction ratio. 3-Power to be transmitted. 4-Centre distance between the shafts. 5-Positive drive requirements. 6-Shafts layout. 7-Space available. 8-Service conditions.

What are the advantages and disadvantages of V belt drive?

Following are the advantages and disadvantages of the v-belt drive over the flat belt drive. The v-belt drive gives compactness due to the small distance between the centres of pulleys. The drive is positive because the slip between the belt and the pulley groove is negligible.

Which type of drive is used to transfer power?

A belt drive is used to transfer power. The belt drive is used in the Mill industry. The belt drive is used in Conveyor. Belt drive is used for transferring the power. The chain drive is also used for transferring power. The belt drive is powered by only a belt.
