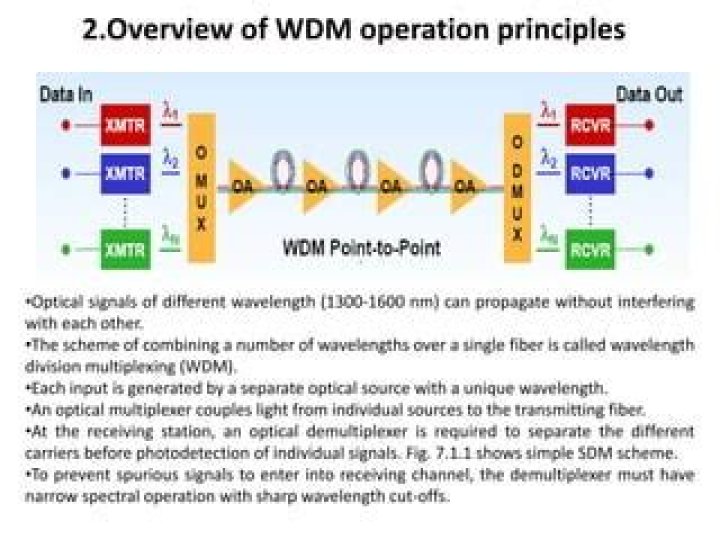

What are the components required for WDM operation?

The essential components of a WDM system are primarily those of any network, viz., transmitters, link and receivers. In addition, the system would require other components such as switches, modulators, amplifiers etc. In case of WDM technology, the transmitters are laser sources with stable tunable wavelengths.

What are the different components of a fiber optic network applying WDM?

The optical layer consists of Optical Line Terminals (OLTs), Optical ADMs (OADMs), and Optical Cross-Connects (OXCs) as shown in the following figure. OLTs multiplex multiple channels into a single fiber or fiber pair.

What is wavelength division multiplexing in computer networks?

Wavelength Division Multiplexing, WDM, is a technology that increases bandwidth by allowing different data streams at different frequencies to be sent over a single optical fiber network. Signals at WDM wavelengths are independent from each other.

What are the different WDM active and passive components?

Couplers, WDMs, attenuators, isolators, and circulators are passive optical components. In addition to these parts, we also offer active components such as optical switches. Fiber optical couplers are used to both split and combine optical signals in optical fibers.

Why WDM is used in optical fiber?

WDM is a technique in fiber optic transmission for using multiple light wavelengths to send data over the same medium. For robust operation of a system with densely packed channels, high-precision filters are required to peel away a specific wavelength without interfering with neighboring wavelengths.

What is wavelength in telecommunications?

Wavelength is the distance between identical points (adjacent crests) in the adjacent cycles of a waveform signal propagated in space or along a wire. The higher the frequency of the signal, the shorter the wavelength.

What is dense wavelength division multiplexing?

Dense wavelength division multiplexing (DWDM) is a fiber-optic transmission technique. It involves the process of multiplexing many different wavelength signals onto a single fiber. Each fiber has a set of parallel optical channels and each one uses slightly different light wavelengths.

What is wavelength fiber?

Common Fiber Optic Wavelengths Wavelengths typically range from 800 nm to 1600 nm, but by far the most common wavelengths actually used in fiber optics are 850 nm, 1300 nm, and 1550 nm. Multimode fiber is designed to operate at 850 nm and 1300 nm, while single-mode fiber is optimized for 1310 nm and 1550 nm.

What is wavelength in telecom?

Wavelengths are high-capacity methods of transporting data from one point to another, using fibre optics. They are used for core networking between, for instance, data centres or head offices. This is possible because data travels on multiple laser transmitters, each of which has its own wavelength, or frequency.

What is wavelength in networking?

What is the need of wavelength division multiplexing?

Wavelength division multiplexing, WDM, has long been the technology of choice for transporting large amounts of data between sites. It increases bandwidth by allowing different data streams to be sent simultaneously over a single optical fiber network.

What is wavelength division multiplexing in computer network?

Wavelength Division Multiplexing. Computer Engineering Computer Network MCA. Wavelength division multiplexing (WDM) is a technique of multiplexing multiple optical carrier signals through a single optical fiber channel by varying the wavelengths of laser lights. WDM allows communication in both the directions in the fiber cable.

What is multiplexing in optical fiber?

It involves the process of multiplexing many different wavelength signals onto a single fiber. Each fiber has a set of parallel optical channels and each one uses slightly different light wavelengths. The fibers employ light wavelengths to transmit data parallel-by-bit or serial-by-character.

What is multiplexing and how does it work?

What is Multiplexing? Wavelength division multiplexing (WDM) is a technique of multiplexing multiple optical carrier signals through a single optical fiber channel by varying the wavelengths of laser lights. WDM allows communication in both the directions in the fiber cable.

What is the difference between WDM and frequency-division multiplexing?

The term WDM is commonly applied to an optical carrier, which is typically described by its wavelength, whereas frequency-division multiplexing typically applies to a radio carrier which is more often described by frequency. This is purely conventional because wavelength and frequency communicate…
