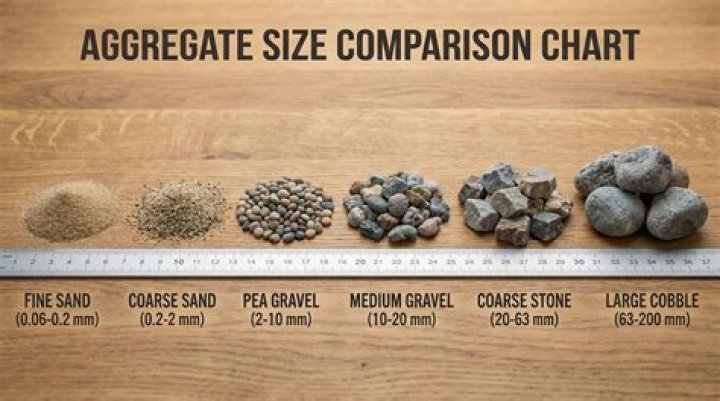

What are the different sizes of aggregate?

Coarse Aggregate

What size is #57 aggregate?

1 to 0.19 inch
A #57 aggregate (combining the gradation of #5 and #7 aggregates) ranges from 1 to 0.19 inch (No. 4 sieve—25 to 4.75 mm) and has the following gradation (amounts finer than the given sieve size): 1½-inch sieve—100% passing; 1-inch—95 to 100%; ½-inch—25 to 60%; No.

What is the normal size of aggregate?

Typically the most common size of aggregate used in construction is 20mm. A larger size, 40mm, is more common in mass concrete. Larger aggregate diameters reduce the quantity of cement and water needed.

What are the different sizes of gravel?

In the Udden-Wentworth scale gravel is categorized into granular gravel (2–4 mm or 0.079–0.157 in) and pebble gravel (4–64 mm or 0.2–2.5 in). ISO 14688 grades gravels as fine, medium, and coarse, with ranges 2–6.3 mm to 20–63 mm.

What is 20mm aggregate?

for example a graded aggregate of nominal size 20 mm means an aggregate most of which passes 20 mm IS sieve. For example 20 mm single size aggregate mean an aggregate most of which passes 20 mm IS sieve and its major portion is retained on 10 mm IS sieve.

How does aggregate size affect concrete?

The tensile strength of the concrete is severely affected by increasing the size of the aggregate. On increasing the maximum grain size to 120–180 mm, the reduction in tensile strength is 30–50% as compared with concretes with maximum aggregate size 20 mm. There is also a reduction in the elongation limit.

What is 20mm aggregate used for?

Applications and uses for 10-20mm gravel 10-20mm gravel is a versatile aggregate that can be used for hard standing, drainage, pipe bedding and concrete production.

What is 20mm gravel used for?

Gravel, also known as garden shingle, can be used to finish a variety of garden or landscaping projects including driveways, pathways, rockeries, borders, and water features.

What is mot limestone?

Mot Type 1 limestone is sized from 40mm down to dust and is mainly used as a bulk fill, a levelling material and as a sub-base for paths, ponds, drives, sheds, patios and construction jobs.

How do I enter aggregate producer shipment information to PennDOT funded projects?

Starting January 1, 2020, Aggregate Producer shipment information to PennDOT funded projects and entered either in the ‘Plant Summary’ and ‘Project Summary’ Excel Spreadsheets must be entered in eCAMMS under the ESB dropdown menu and selection for Plant Summary Shipment Entry ( ).

What is the AASHTO Standard for coarse aggregate?

From PennDOT Publication 408, Section 703.2 – Coarse Aggregate The AASHTO system ranks specs according to size (1-10), with 1 being the largest (all material must pass a 4” sieve) and 10 being the smallest (all material passing a 3/8” sieve).

What is the difference between aggregate and rip rap?

Aggregate – a mixture of specific types and sizes of crushed rock or gravel. Generally used with a binder in pavements. Also used as road base and sub-base. Rip-Rap – a loose assemblage of large stones (rubble). Often used for erosion control and stabilization of roadside features, or as road sub-base on soft ground.

What is PennDOT 2RC clay?

PennDOT 2RC: A widely varying specification with a top size of 2” and few other restrictions. 2RC typically has an extremely high clay content and may contain soil and even organic components. Because it is easy to make, it is usually cheap and can make good pipe bedding or road fill.
