What are the dimensions of a standard trailer?
The standard dimensions of semi-trailers are: Length: 48 – 53 feet (576 – 636 inches) Width: 8.5 feet (102 inches) Height: 13.5 feet (162 inches)
What is the height of a Tautliner?
Specification
| Standard Tautliner Interlink : 7.1m/11.2m | |
|---|---|
| Outside Width: 2 600mm | Outside Width: 2 600mm |
| Inside Length: 7 110mm | Inside Length: 11 210mm |
| Inside Width: 2 516mm | Inside Width: 2 516mm |
| Inside Height: 2 800mm | Inside Height: 2 800mm |

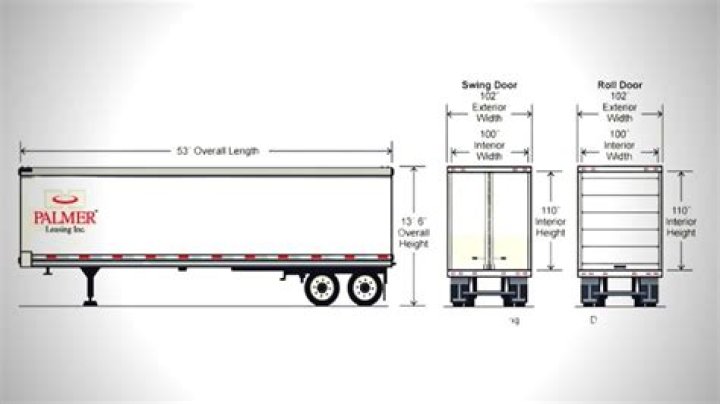

What are the dimensions of a 53 foot trailer?
If we look at a 53 feet semi-trailer, dimensions vary ever so slightly between the overall and the interior. Overall length is 53 feet; overall width is 102″; and overall height is 13ft 6 inches. On the inside, semi-trailers are 47′ 6″ long, 98.5″ wide and 108 inches high.
What are the dimensions of a flatbed trailer?
Flatbed Trailers Common dimensions for flatbeds are as follows: Length- 48 ft – 53 ft. Width- 8.5 ft. Height- 8.5 ft.
How wide is a trailer home?
Although the average single-wide mobile home runs 14-18 feet wide, and 66-80 feet long, it’s essential for homebuyers to understand that the products are quite diverse. Each make and model enjoys distinguishing features that may make it the best option on the market.
How wide is 18 wheeler trailer?
On average, semi-trucks in the United States measure around 72 feet long, 13.5 feet tall, and 8.5 feet wide.
What is a Tautliner truck?
It’s a flat-bed truck with a roof structure supported by a headboard and tailboard that has roof rails and supports. …
How wide is a 40 ft trailer?
| External Dimensions | Internal Dimensions |
|---|---|
| Length: 40′ | Length: 39′ 5″ |
| Width: 8′ 6″ | Width: 98″ |
| Height: 9′ 6″ | Height: 96″ – 106″ |
How wide is a 53 ft dry van?
Our Most Versatile Dry Van Model
| Length: | Exterior: 53′ 0” | Interior: 52′ 8″ |
|---|---|
| Width: | Exterior: 102.36″ | Interior: 100.5″ at post |
| Height: | Height Exterior: 13’6” | Interior: 110” at sidewall eve |
| Capacity: | 65,000 GVWR | 4,035 Cu. Ft. of interior volume |
| Tare Weight: | 13,880 lbs. ± 3% |
How wide is a 53 dry van trailer?
The standard dimensions of Dry Van are: 53′ in length. 8’6” in width. 9′ in height.
How wide is a 48 ft flatbed trailer?
Length – 48′ long – Most trailers are 48′ long, but in some cases you can legally overhang either the front or rear of the trailer and still be legal. Width – 8’6″ wide – This is the max width throughout the US and Canada.
How many square feet is in a single wide trailer?
Single wides are typically 18 feet or less in width and 90 feet or less in length. The most common size for a single wide home is 72 feet wide by 15 feet wide, with a total of 1,080 square feet. Because they are smaller in width, a single wide home can be shipped on one semi-trailer.
What are the features of a Tautliner Truck?
Heavy-duty Tautliner trucks generally have powerful six-cylinder, turbo-charged diesel engines, power steering and ABS braking technology. Tautliner trucks are fitted with tear resistant singlewide tires that impart stability and aid fuel economy.
What is load versatility on a Tautliner?
Its load versatility enables you to use the full length and width of the trailer’s deck to provide for increased backhaul capability. The Tautliner’s three-way simultaneous access through the rear doors and both sides ensures easier loading and unloading for faster deliveries without first-on, last-off load planning challenges.
What is Tautliner tensioning system?
The Tautliner tensioning system with the Kin-Sider curtain provides a secure, weathertight fit for added protection. Designed to provide superior load protection in all kinds of weather, our long-lasting and durable curtains mean low maintenance and greater performance for improved greater profits.
What does Tautliner mean?
Tautliner trucks are used for secure road transportation. Tautliner trucks are built to be strong and they are generally used to transport extremely heavy items like heavy machinery.
