What are the dimensions of a W18x35 steel beam?
Wide Flange Beam Specifications Chart
| SIZE | LBS/FT | DEPTH |
|---|---|---|
| W16x89 | 89 | 16.75 |
| W16x100 | 100 | 16.97 |
| W18x35 | 35 | 17.7 |
| W18x40 | 40 | 17.9 |
How are steel beams sizes?
In Canada and the United States, steel I-beams are commonly specified using the depth (in inches) and weight of the beam (in pounds per foot). For example, a “4 x 13” I-beam is approximately 4 inches in depth (the measurement taken from the outer face of the first flange, to the outer face of the opposite flange).
How wide is a W16 steel beam?
Wide Flange Beams – Misc Shapes
| Size & Weight Per Foot | B Flange Width Inches |
|---|---|
| W14 x 132 | 14.725 |
| W16 x 31 | 5.525 |
| W16 x 36 | 6.985 |
| W16 x 40 | 6.995 |
How do I choose a steel beam size?
To calculate the necessary depth of a beam, divide the span (in inches) by 20. For example, a 25′ span would be 25×12 / 20 = 15”. The width of this beam would be between 1/3 and ½ the depth.
How do you calculate the weight of a steel beam?
The weight of an I-beam is calculated by taking the weight per meter (or foot) value and multiplying it by the total length of the beam. The weight per unit value is usually provided by a steel beam manufacturer. The weight per meter or foot of a beam is dependent on not only the height and width of the beam but also the thickness of the steel used.
What size is a steel beam?
Furthermore, what size of steel beam do I need? Subsequently, question is, what is the standard size of beam? The standard size of beam is 9″x12″, which is usually used in many of the residential building. Beside this, how big of a beam do I need to span 20 feet?

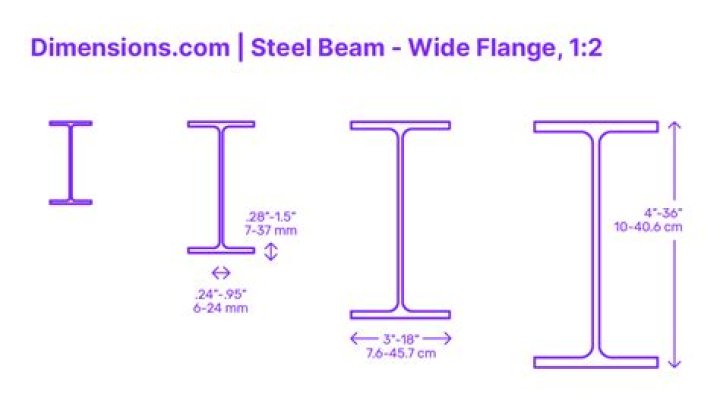

What are the dimensions of steel beams?
Steel beam width and depth dimensions may vary from 4 to 16 inches, and the beams can span between 40 and 65 feet, depending on the needs of the construction site.
What is the standard size of a beam?
Standard Size of Beams According to theIndian standards code, the size of the beam for the residential building is 225 mm x 300 mmor 9″ x 12″. The minimum size of the Reinforced concrete beam should not be less than 225 mm x 225 mm or 9″x 9″.
