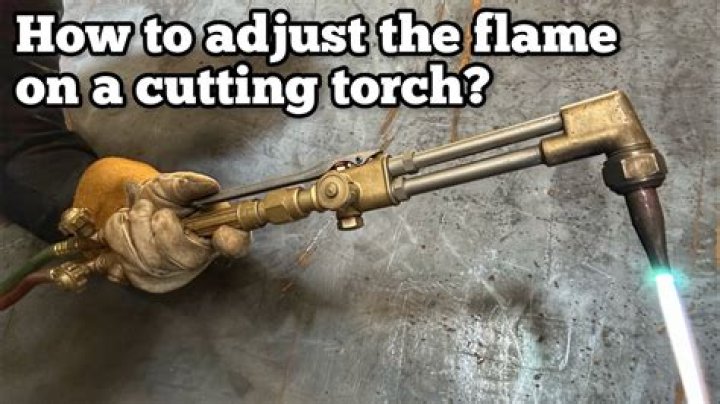

What are the steps to setting up the cutting torch?
- Separately purge both oxygen and fuel gas lines.
- Open fuel gas valve 1/2 turn.
- Ignite flame with striker.
- Increase fuel gas flow until flame leaves end of tip and no smoke is present.
- Decrease until flame goes back to tip.
- Open oxygen valve and adjust to neutral flame.
- Depress oxygen lever and make necessary adjustments.
What are the procedure in setting up cutting equipment?
- Step 1: First Things First.
- Step 2: Get the Kit Out of the Welding Cage.
- Step 3: Choose Your Torch Kind and Size.
- Step 4: Check for Your O-rings.
- Step 5: Install Torch Top to the Torch Body.
- Step 6: Preparing to Open the Tanks.
- Step 7: Opening the Tanks and Setting the Pressure.
- Step 8: Start Cutting or Welding!
What are the settings for oxygen and acetylene?
The recommended setting for multi-hole cutting is the oxygen regulator at 40 psig with the acetylene regulator setting at 10 psig.
What is the procedure for gas cutting?
Process fundamentals A jet of pure oxygen is then directed into the preheated area instigating a vigorous exothermic chemical reaction between the oxygen and the metal to form iron oxide or slag. The oxygen jet blows away the slag enabling the jet to pierce through the material and continue to cut through the material.
What should my torch gauges be set at?
The recommended setting is for the fuel gas regulator to be set at 10 psig and the oxygen regulator at 45 psig. This recommendation applies when cutting less than 1.5 inch steel with the use of propane, propylene or natural gas.
What should my oxy Acetylene regulators be set at?
The recommended setting is for the fuel gas regulator to be set at 10 psig and the oxygen regulator at 45 psig.
What pressure should I set my cutting torch?
The gas pressures should be set at 3 to 5psi for Acetylene, and 20 to 30psi for the oxygen, but when you squeeze the oxygen lever after the initial flame adjustment of the preheat flames to neutral just to a point where the feather disappears,the oxygen cutting stream should be visible and at least 4 inches in length …
What should my cutting torch be set at?
What should my oxy acetylene regulators be set at?
What pressure should I set my oxygen and acetylene?
3 to 5psi
The gas pressures should be set at 3 to 5psi for Acetylene, and 20 to 30psi for the oxygen, but when you squeeze the oxygen lever after the initial flame adjustment of the preheat flames to neutral just to a point where the feather disappears,the oxygen cutting stream should be visible and at least 4 inches in length …
How do you set up a cutting torch for welding?
Setting up the Cutting Torch Hook up the gauges to the appropriate tanks. Make sure the acetylene regulator is turned off. Open the gas valve on top of the acetylene tank with one turn of the wrist. Open the regulator valve by turning the tee handle clockwise. Open the gas valve on the torch handle to vent it.
How do you use an oxygen cutting torch?
Slightly open the oxygen valve on the cutting torch. Open just enough to start the flow of oxygen through the torch. Open the acetylene valve on the torch handle about 1/8 turn, or 45 degrees. Light the torch with a spark lighter and adjust the acetylene valve on the torch handle and the oxygen valve on the cutting torch until
How do you use an acetylene torch for cutting?
Cutting with the Torch Put your gloves and goggles on before lighting the torch. Light the torch with a striker. Adjust the acetylene valve until the flame is about 10 in (25 cm) long. Turn the forward oxygen valve on slowly. Open the oxygen valve more to increase the flame size.
How do you light a cutting torch with a regulator?
Light the torch with a spark lighter and adjust the acetylene valve on the torch handle and the oxygen valve on the cutting torch until the flame has no yellow areas and the center is bright blue and well defined. Check the regulator gauges and adjust as necessary to maintain the proper pressures.
