What are the uses of a light following robot?

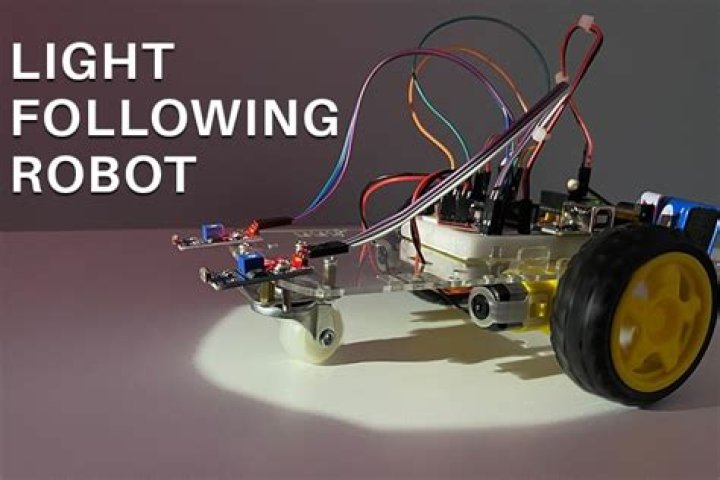

Light follower robot is a mobile robot which detects the light (such as the light of a flashlight) and follows the light on the travelling path. The robot has two light detection sensors which are prepared with LDRs (light dependent resistors).
Which sensor is used in line follower robot?
QRD1114 IR reflective line/object sensor and CNY70 reflective optical sensor are the most commonly used sensors for line follower robots. The CNY70 is a reflective sensor that includes an infrared emitter and phototransistor in a leaded package which blocks visible light.
What is line follower principle?
Line Follower Robot Circuit Principle This circuit mainly consists of 8051 microcontroller, two IR sensors, motors and motor driver IC (embedded in a module). If the left sensor moves away from the line, robot moves towards right. Similarly, if right sensor moves away from the path, robot moves towards its left.
How does line follower robot work?
A line follower consists of an infrared light sensor and an infrared LED. It works by illuminating a surface with infrared light; the sensor then picks up the reflected infrared radiation and, based on its intensity, determines the reflectivity of the surface in question.
How does a light tracking robot work?
The robot’s circuit detects bright light (for example, from a flashlight). The circuit then sends electrical signals to the robot’s motors to turn them on. The motors drive the robot’s wheels, which make the robot move and steer.
Why we use IR sensors in line follower robot?
In case of a line follower robot we use IR transmitters and receivers also called photodiodes. They are used for sending and receiving light. IR transmits infrared lights. When infrared rays falls on white surface, it’s reflected back and catched by photodiodes which generates some voltage changes.
Why IR sensors are used?
IR sensors are now widely used in motion detectors, which are used in building services to switch on lamps or in alarm systems to detect unwelcome guests. In a defined angle range, the sensor elements detect the heat radiation (infrared radiation) that changes over time and space due to the movement of people.
What is the need to build a line follower?
It must be powerful enough for expandability. It should run off a simple power source. It should be able to follow a line or a wall, and avoid obstacles.
Why Arduino is used in line follower robot?
In case of a line follower robot we use IR transmitters and receivers also called photodiodes. They are used for sending and receiving light. Here in this Arduino line follower robot when sensor senses white surface then Arduino gets 1, ie, HIGH as input and when senses black line arduino gets 0, ie, LOW as input.
Is traffic light a robot?
Traffic lights are actually called robots in many countries and not just South Africa only. The automatic function of the traffic light resembles that of a robotic machine and hence the name.
What is the visual line in line follower Robot?
Usually, the visual line is the path in which the line follower robot goes and it will be a black line on a white surface but the other way (white line on a black surface) is also possible. Certain advanced Line Follower Robots use invisible magnetic field as their paths.
How to use Lineline following robotic vehicle circuit?
Line Following Robotic Vehicle Circuit Working 1 Initially draw the path on a light colored surface with black color tape. 2 Place the robot on the floor. 3 Now power on the circuit. 4 Robot moves in the specified path. 5 When it moves out of path, sensors check it and automatically adjust the robot. More
What is a line fallowing robot?
The line fallowing robot is one of the self-operating robots. That detects and fallows a line drawn on the area. The line is indicated by white line on a block surface or block line on a white surface. This system must be sense by the line.
How does the robot follow the fixed path?
When robot is placed on the fixed path, it follows the path by detecting the line. The robot direction of motion depends on the two sensors outputs. When the two sensors are on the line of path, robot moves forward.
