What do you mean by bipolar transistor?

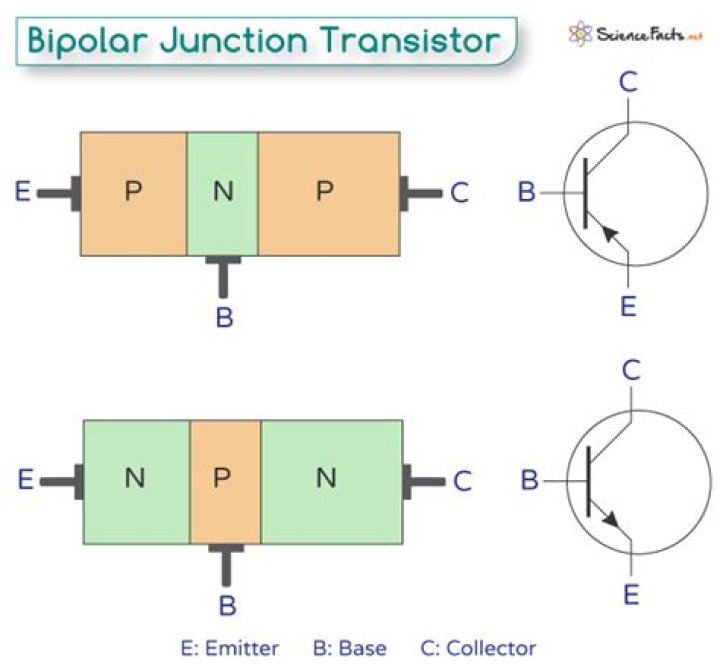

Bipolar transistors are a type of transistor composed of pn junctions, which are also called bipolar junction transistors (BJTs). Whereas a field-effect transistor is a unipolar device, a bipolar transistor is so named because its operation involves two kinds of charge carriers, holes and electrons.
What is the main use of a bipolar transistor?
Bipolar transistors are still used for amplification of signals, switching, and in digital circuits. Specialized types are used for high voltage switches, for radio-frequency amplifiers, or for switching heavy currents.
What is meant by unipolar and bipolar transistor?
Unipolar, field effect transistors are, in their conductive tract, made up of a single type of semiconductor, either N-type or P-type. Bipolar transistors have a junction between N-type and P-type semiconductors in their conductive tract, either in a NPN, or PNP configuration.
Why Ujt is called Unijunction?
A Unijunction Transistor (UJT) is a three terminal semiconductor switching device. Since there is only one rectifying junction within the device, it is called a ‘Unijunction’ transistor.
Why FET is called unipolar?
FETs are also known as unipolar transistors since they involve single-carrier-type operation. That is, FETs use either electrons or holes as charge carriers in their operation, but not both. The most widely used field-effect transistor is the MOSFET (metal-oxide-semiconductor field-effect transistor).
What is the main function of unijunction transistor?
The Unijunction Transistor or UJT for short, is another solid state three terminal device that can be used in gate pulse, timing circuits and trigger generator applications to switch and control either thyristors and triac’s for AC power control type applications.
What is a DIAC used for?
The name DIAC comes from the words DIode AC switch. The DIAC is an electronics component that is widely used to assist even triggering of a TRIAC when used in AC switches and as a result they are often found in light dimmers such as those used in domestic lighting.
What is the temperature range of the A1120 switch?
The A1120, A1121, A1122, A1123, and A1125 Hall-effect, unipolar switches are extremely temperature-stable and stress-resistant sensor ICs, especially suited for operation over extended temperature ranges to 150°C.
What is the difference between the A1120 and a1125?
For the A1120, A1121, A1122, and A1123, a south pole of sufficient strength turns the output on. Removal of the magnetic field turns the output off. The A1125 is complementary, in that for these devices, a south pole turns the A1125 output off, and removal of the magnetic field turns the output on.
What is a transistor and how does it work?
What is a Transistor? A transistor is a type of a semiconductor device that can be used to both conduct and insulate electric current or voltage. A transistor basically acts as a switch and an amplifier. In simple words, we can say that a transistor is a miniature device that is used to control or regulate the flow of electronic signals.
What are the terminals of a field effect transistor called?
Field-effect transistor (FET) The four terminals of the FET are named source, gate, drain, and body ( substrate ). On most FETs, the body is connected to the source inside the package, and this will be assumed for the following description.
